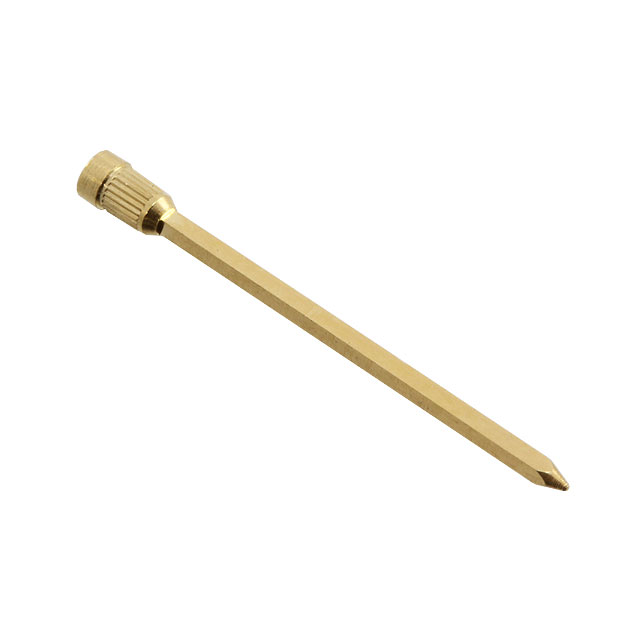

1094-0-05-15-00-00-01-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1094-0-05-15-00-00-01-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1094-0-05-15-00-00-01-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1094-0-05-15-00-00-01-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PC PIN SQUARE 0.025 GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.124 | $0.118 | $0.101 | $0.086 | $0.082 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.074 | $0.07 | $0.059 | $0.054 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1094-0-05-15-00-00-01-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN SQUARE 0.025 GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 362120 pcs | Data sheet | Wrapost Terminals (metric)Wrapost Terminals (in.) |
| Category | Connectors, Interconnects | Termination | Press-Fit, Knurled, Wire Wrap |
| Terminal Type | PC Pin | Terminal Style | Single End |
| Series | 1094 | Pin Size - Below Flange | - |
| Pin Size - Above Flange | 0.025" (0.64mm) Square | Packaging | Bulk |
| Other Names | 1094-005150000010 1094-005150000010-ND 1094005150000010 ED1179 |
Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.056" (1.42mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.710" (18.03mm) | Length - Below Flange | - |
| Length - Above Flange | 0.680" (17.27mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.065" (1.65mm) | Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.025" (0.64mm) Square |
| Contact Material | Brass Alloy | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Board Thickness | - |
