1030-3-17-15-30-27-02-0

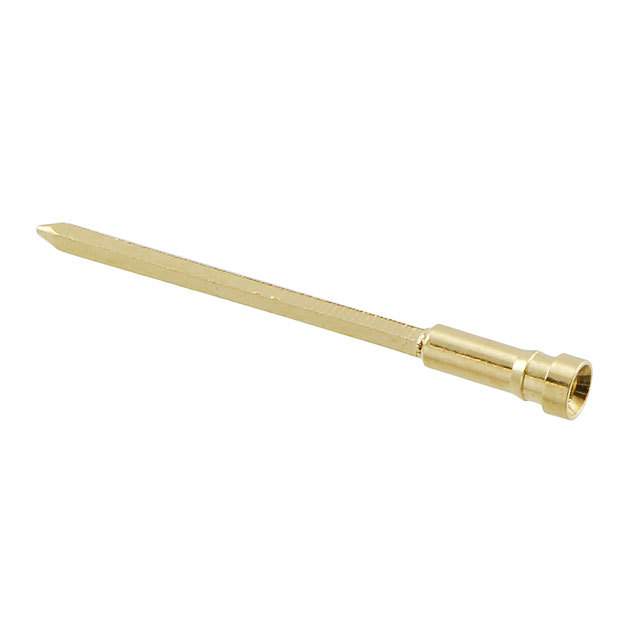

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1030-3-17-15-30-27-02-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1030-3-17-15-30-27-02-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1030-3-17-15-30-27-02-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT .015-.025 PRESSFIT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.157 | $0.149 | $0.134 | $0.119 | $0.114 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.104 | $0.099 | $0.082 | $0.074 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1030-3-17-15-30-27-02-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .015-.025 PRESSFIT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 258570 pcs | Data sheet | Wrapost Receptacles (metric)Wrapost Receptacles (in.) |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Tail Type | Wire Wrap | Tail Diameter | 0.025" (0.64mm) Square |
| Socket Depth | 0.162" (4.12mm) | Series | 1030 |
| Pin Hole Diameter | 0.043" (1.09mm) | Packaging | Bulk |
| Other Names | 1030-317153027020 1030-317153027020-ND 1030317153027020 ED1168 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.057" (1.45mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.693" (17.60mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.072" (1.83mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Wire Wrap Press-Fit | Contact Material | Brass Alloy |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.015" ~ 0.025" (0.38mm ~ 0.64mm) |
