0716-0-33-15-23-27-10-0

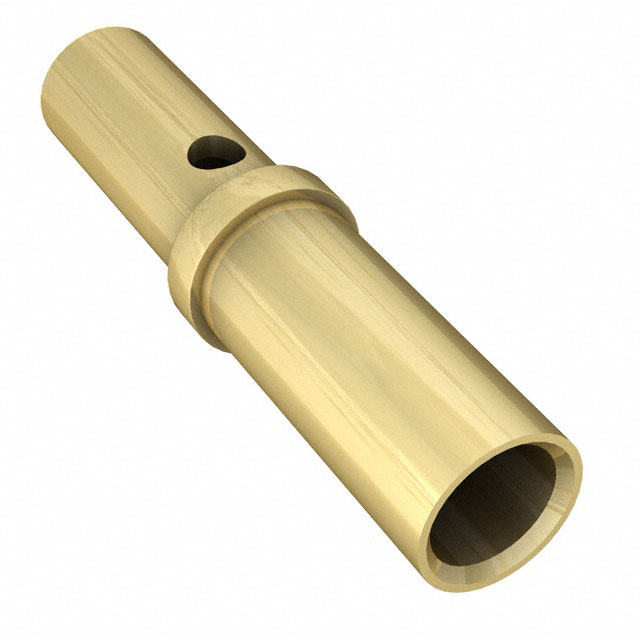

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0716-0-33-15-23-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0716-0-33-15-23-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0716-0-33-15-23-27-10-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT .045-.065 SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.411 | $0.362 | $0.312 | $0.255 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.227 | $0.198 | $0.189 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0716-0-33-15-23-27-10-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .045-.065 SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 123457 pcs | Data sheet | Pin Receptacles (in)Pin Receptacles (metric) |
| Category | Connectors, Interconnects | Termination | Solder |
| Tail Type | Crimp | Tail Diameter | - |
| Socket Depth | 0.214" (5.44mm) | Series | 716 |
| Pin Hole Diameter | 0.088" (2.24mm) | Packaging | Bulk |
| Other Names | ED1363 | Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.518" (13.16mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.129" (3.28mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.045" ~ 0.065" (1.14mm ~ 1.65mm) Crimp Solder | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.045" ~ 0.065" (1.14mm ~ 1.65mm) |
