0507-0-15-15-31-27-10-0

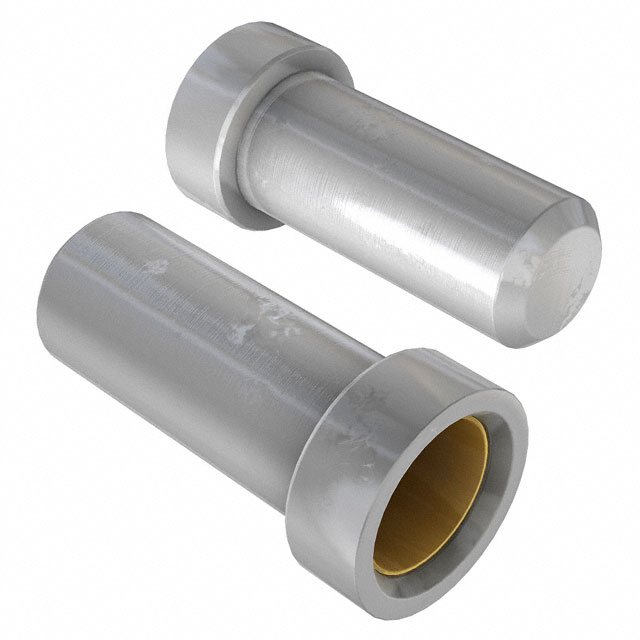

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0507-0-15-15-31-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0507-0-15-15-31-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0507-0-15-15-31-27-10-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT .018-.023 SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.143 | $0.135 | $0.116 | $0.098 | $0.095 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.085 | $0.081 | $0.068 | $0.062 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0507-0-15-15-31-27-10-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .018-.023 SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 347796 pcs | Data sheet | 0507,0531 Series(metric)0507,0531 Series(in.) |
| Category | Connectors, Interconnects | Termination | Solder |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.073" (1.85mm) | Series | 507 |
| Pin Hole Diameter | - | Packaging | Bulk |
| Other Names | 0507015153127100 ED1338 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.042" (1.07mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.090" (2.29mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.052" (1.32mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.018" ~ 0.023" (0.46mm ~ 0.60mm) No Tail Solder | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.018" ~ 0.023" (0.46mm ~ 0.60mm) |
