0463-0-15-15-21-27-04-0

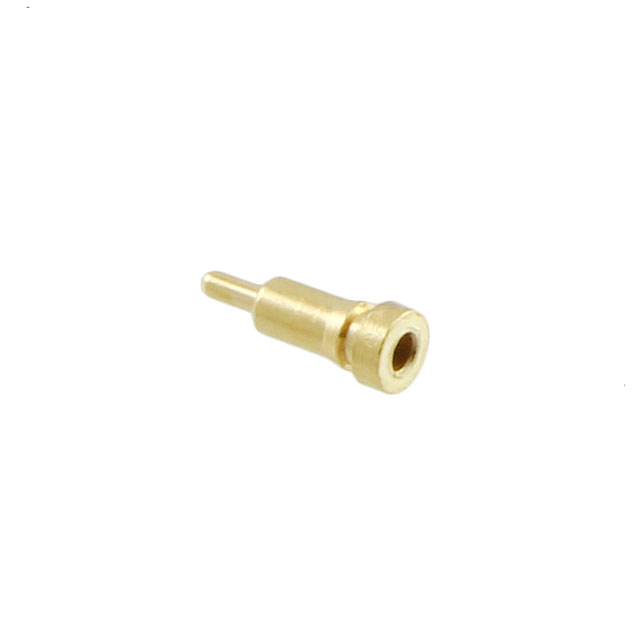

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0463-0-15-15-21-27-04-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0463-0-15-15-21-27-04-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0463-0-15-15-21-27-04-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT .015-.022 PRESSFIT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.103 | $0.096 | $0.082 | $0.07 | $0.067 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.06 | $0.058 | $0.048 | $0.044 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0463-0-15-15-21-27-04-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .015-.022 PRESSFIT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 463624 pcs | Data sheet | Pin Receptacles (in.)Pin Receptacles (metric) |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Tail Type | Standard Tail | Tail Diameter | 0.020" (0.51mm) |
| Socket Depth | 0.093" (2.36mm) | Series | 463 |
| Pin Hole Diameter | 0.031" (0.79mm) | Packaging | Bulk |
| Other Names | 0463-015152127040 0463-015152127040-ND 0463015152127040 463015152127040 ED1267 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.043" (1.09mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.156" (3.96mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.055" (1.40mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.015" ~ 0.022" (0.38mm ~ 0.56mm) Standard Tail Press-Fit | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.015" ~ 0.022" (0.38mm ~ 0.56mm) |
