0405-0-15-80-34-80-04-0

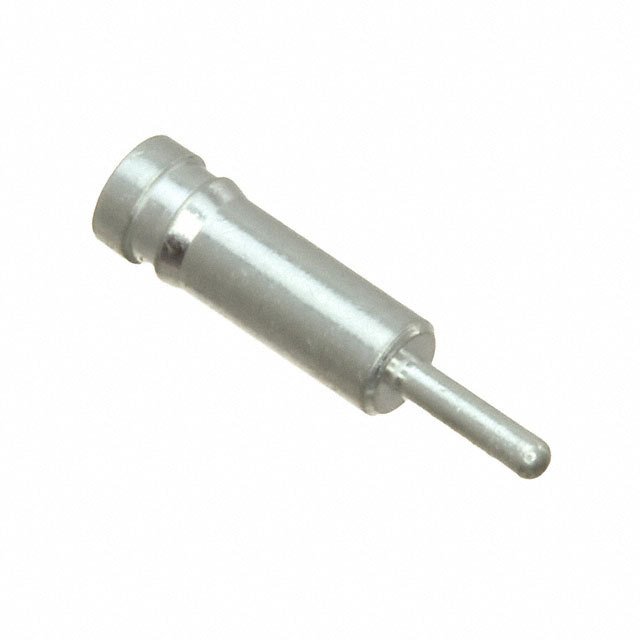

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0405-0-15-80-34-80-04-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0405-0-15-80-34-80-04-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0405-0-15-80-34-80-04-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.433 | $0.382 | $0.36 | $0.345 | $0.33 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.30 | $0.27 | $0.24 | $0.217 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0405-0-15-80-34-80-04-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT | Lead Free Status / RoHS Status | RoHS Compliant |
| Quantity Available | 107263 pcs | Data sheet | Pin Receptacles (in.)Pin Receptacles (metric) |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Tail Type | Standard Tail | Tail Diameter | 0.030" (0.76mm) |
| Socket Depth | 0.220" (5.59mm) | Series | 0405 |
| RoHS Status | RoHS Compliant | Pin Hole Diameter | 0.064" (1.63mm) |
| Packaging | Bulk | Other Names | 0405-0-15-80-34-80-04-0-ND ED11331 |
| Operating Temperature | -55°C ~ 125°C | Mounting Hole Diameter | 0.084" (2.13mm) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.375" (9.53mm) |
| Insertion Force | - | Flange Diameter | 0.090" (2.29mm) |
| Features | - | Detailed Description | Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) Standard Tail Press-Fit |
| Contact Material | Beryllium Copper | Contact Finish Thickness | 200.0µin (5.08µm) |
| Contact Finish | Tin | Board Thickness | - |
| Accepts Pin Diameter | 0.032" ~ 0.046" (0.81mm ~ 1.17mm) |
