0389-2-15-15-08-27-10-0

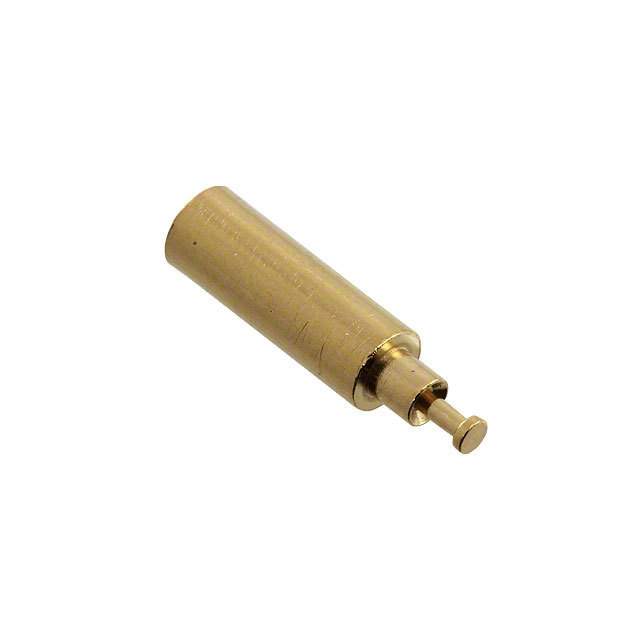

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0389-2-15-15-08-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0389-2-15-15-08-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0389-2-15-15-08-27-10-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT .084-.102 SWAGE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.489 | $0.443 | $0.416 | $0.398 | $0.38 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.344 | $0.317 | $0.271 | $0.253 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0389-2-15-15-08-27-10-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .084-.102 SWAGE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 84436 pcs | Data sheet | Pin Receptacles (in.)Pin Receptacles (metric) |
| Category | Connectors, Interconnects | Termination | Swage |
| Tail Type | Turret | Tail Diameter | - |
| Socket Depth | 0.385" (9.78mm) | Series | 389 |
| Pin Hole Diameter | 0.122" (3.10mm) | Packaging | Bulk |
| Other Names | 0389-215150827100 0389-215150827100-ND 0389215150827100 389215150827100 ED1261 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.094" (2.39mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.642" (16.31mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.159" (4.04mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.084" ~ 0.102" (2.13mm ~ 2.59mm) Turret Swage | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Board Thickness | 0.062" (1.57mm) | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.084" ~ 0.102" (2.13mm ~ 2.59mm) |
