0366-0-15-15-13-27-10-0

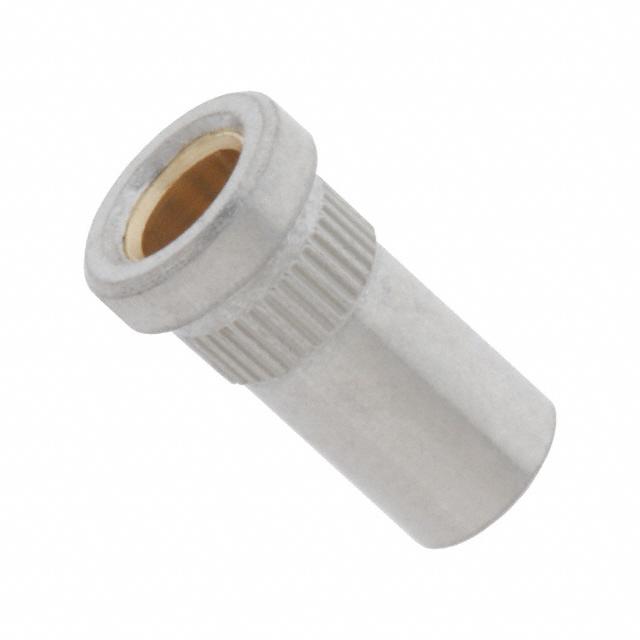

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0366-0-15-15-13-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0366-0-15-15-13-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0366-0-15-15-13-27-10-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT .048-.064 PRESSFIT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.258 | $0.227 | $0.213 | $0.204 | $0.195 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.178 | $0.16 | $0.142 | $0.129 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0366-0-15-15-13-27-10-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .048-.064 PRESSFIT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 185075 pcs | Data sheet | Pin Receptacles (in.) |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.250" (6.35mm) | Series | 366 |
| Pin Hole Diameter | 0.088" (2.24mm) | Packaging | Bulk |
| Other Names | 00366015151327100 0366-015151327100 0366-015151327100-ND 0366015151327100 366015151327100 ED90090 Q3903197 Q4112640 Q5773962 Q8095319 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.109" (2.77mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.250" (6.35mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.137" (3.48mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.048" ~ 0.064" (1.22mm ~ 1.63mm) No Tail Press-Fit | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.048" ~ 0.064" (1.22mm ~ 1.63mm) |
