0326-2-19-15-06-27-10-0

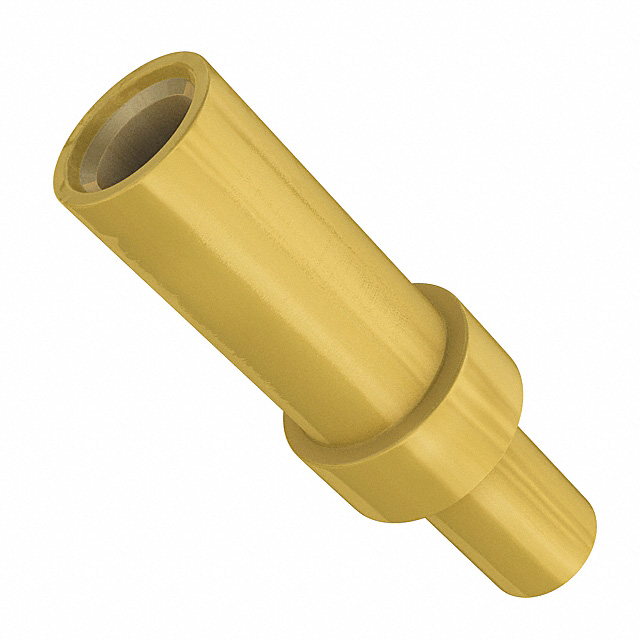

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0326-2-19-15-06-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0326-2-19-15-06-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0326-2-19-15-06-27-10-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT .022-.032 SWAGE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.238 | $0.222 | $0.20 | $0.178 | $0.17 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.156 | $0.148 | $0.122 | $0.111 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0326-2-19-15-06-27-10-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .022-.032 SWAGE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 179972 pcs | Data sheet | Pin Receptacles (in.)Pin Receptacles (metric) |
| Category | Connectors, Interconnects | Termination | Swage |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.170" (4.32mm) | Series | 326 |
| Pin Hole Diameter | 0.051" (1.30mm) | Packaging | Bulk |
| Other Names | 00326219150627100 0326-219150627100 0326-219150627100-ND 0326219150627100 326219150627100 ED90080 Q7364748 Q9109176 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.060" (1.52mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.294" (7.47mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.094" (2.39mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.022" ~ 0.032" (0.56mm ~ 0.81mm) No Tail Swage | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Board Thickness | 0.062" (1.57mm) | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.022" ~ 0.032" (0.56mm ~ 0.81mm) |
