0316-0-15-15-34-27-10-0

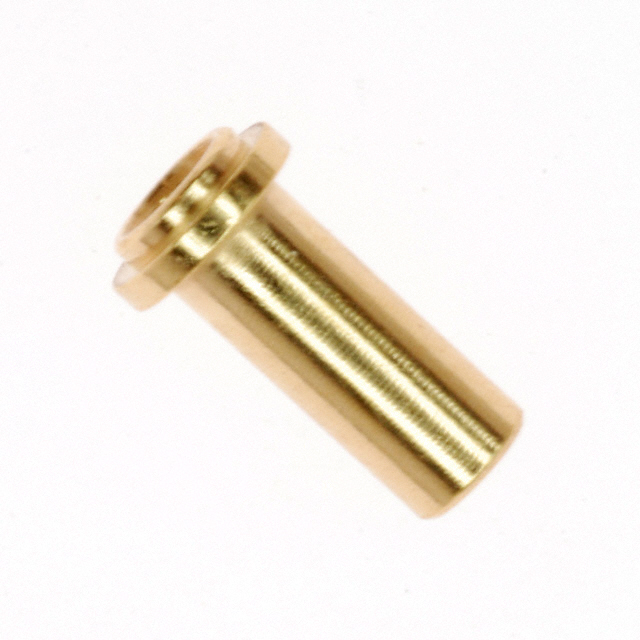

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0316-0-15-15-34-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0316-0-15-15-34-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0316-0-15-15-34-27-10-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT .032-.046 SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.188 | $0.178 | $0.16 | $0.142 | $0.136 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.124 | $0.118 | $0.098 | $0.089 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0316-0-15-15-34-27-10-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .032-.046 SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 234091 pcs | Data sheet | Pin Receptacles (in.)Pin Receptacles (metric) |
| Category | Connectors, Interconnects | Termination | Solder |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.195" (4.95mm) | Series | 316 |
| Pin Hole Diameter | 0.064" (1.63mm) | Packaging | Bulk |
| Other Names | 00316015153427100 0316-015153427100 0316-015153427100-ND 0316015153427100 316015153427100 ED90077 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.087" (2.21mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.236" (6.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.126" (3.20mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) No Tail Solder | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.032" ~ 0.046" (0.81mm ~ 1.17mm) |
