0314-0-15-80-34-80-10-0

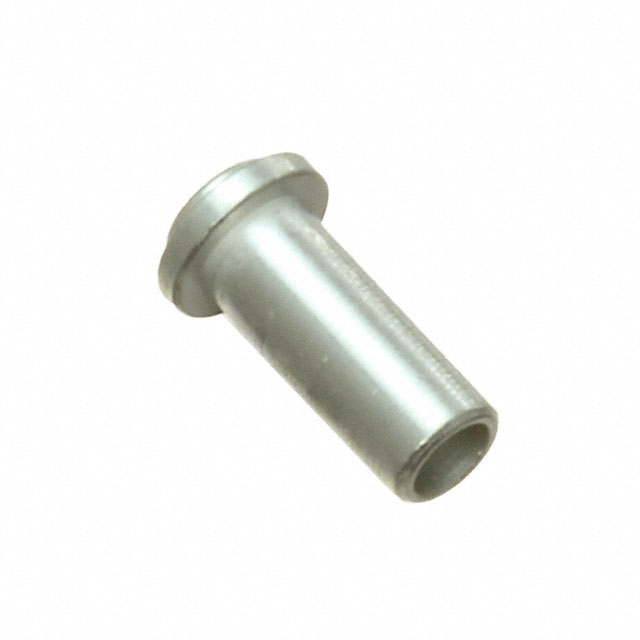

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0314-0-15-80-34-80-10-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0314-0-15-80-34-80-10-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0314-0-15-80-34-80-10-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.421 | $0.37 | $0.348 | $0.334 | $0.319 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.29 | $0.261 | $0.232 | $0.21 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0314-0-15-80-34-80-10-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT | Lead Free Status / RoHS Status | RoHS Compliant |
| Quantity Available | 101913 pcs | Data sheet | Pin Receptacles (in.)Pin Receptacles (metric) |
| Category | Connectors, Interconnects | Termination | Solder |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.236" (5.99mm) | Series | 0314 |
| RoHS Status | RoHS Compliant | Pin Hole Diameter | 0.064" (1.63mm) |
| Packaging | Bulk | Other Names | 0314-0-15-80-34-80-10-0-ND ED11312 |
| Operating Temperature | -55°C ~ 125°C | Mounting Hole Diameter | 0.087" (2.21mm) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.236" (6.00mm) |
| Insertion Force | - | Flange Diameter | 0.126" (3.20mm) |
| Features | - | Detailed Description | Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) No Tail Solder |
| Contact Material | Beryllium Copper | Contact Finish Thickness | 200.0µin (5.08µm) |
| Contact Finish | Tin | Board Thickness | - |
| Accepts Pin Diameter | 0.032" ~ 0.046" (0.81mm ~ 1.17mm) |
