0306-0-19-15-16-27-10-0

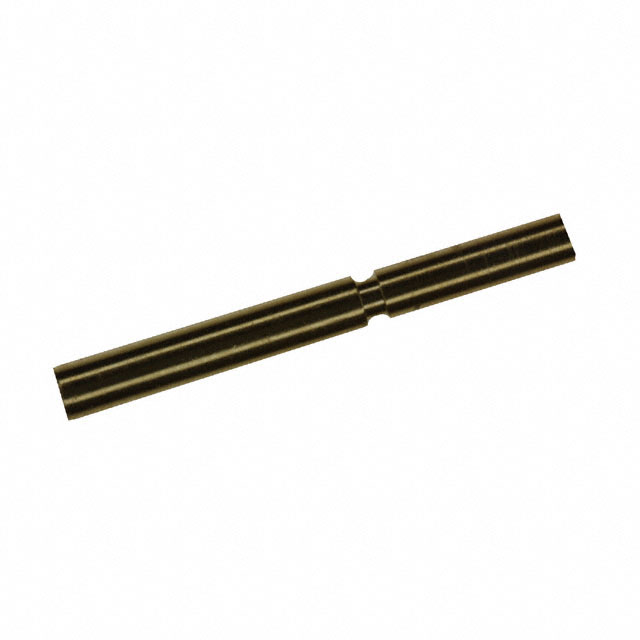

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0306-0-19-15-16-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0306-0-19-15-16-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0306-0-19-15-16-27-10-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT .022-.034 SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.323 | $0.284 | $0.268 | $0.256 | $0.245 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.223 | $0.201 | $0.178 | $0.162 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0306-0-19-15-16-27-10-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .022-.034 SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 138063 pcs | Data sheet | Pin Receptacles (in.)Pin Receptacles (metric) |
| Category | Connectors, Interconnects | Termination | Solder |
| Tail Type | Crimp | Tail Diameter | - |
| Socket Depth | 0.280" (7.11mm) | Series | 306 |
| Pin Hole Diameter | 0.051" (1.30mm) | Packaging | Bulk |
| Other Names | 0306-019151627100 0306-019151627100-ND 0306019151627100 3.06019E+14 306019151627100 ED90321 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.665" (16.89mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.075" (1.91mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.022" ~ 0.034" (0.56mm ~ 0.86mm) Crimp Solder | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | 0.025" (0.64mm) |
| Accepts Pin Diameter | 0.022" ~ 0.034" (0.56mm ~ 0.86mm) |
