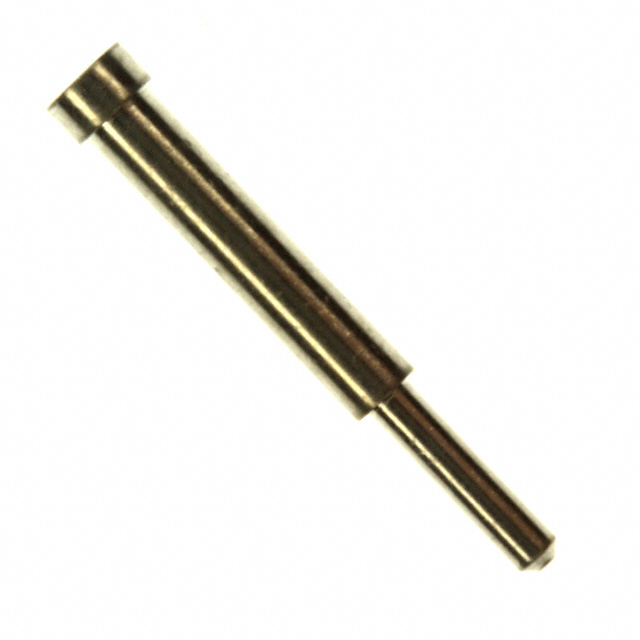

0301-1-15-01-47-27-10-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0301-1-15-01-47-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0301-1-15-01-47-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0301-1-15-01-47-27-10-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT .025-.037 SOLDER |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.264 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0301-1-15-01-47-27-10-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .025-.037 SOLDER | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 82584 pcs | Data sheet | Pin Receptacles (in.) |
| Category | Connectors, Interconnects | Termination | Solder |
| Tail Type | Standard Tail | Tail Diameter | 0.040" (1.02mm) |
| Socket Depth | 0.250" (6.35mm) | Series | 301 |
| Pin Hole Diameter | 0.051" (1.30mm) | Packaging | Bulk |
| Other Names | 0301-115014727100 0301115014727100 301115014727100 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.042" (1.07mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.537" (13.64mm) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insertion Force | - |
| Flange Diameter | 0.078" (1.98mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.025" ~ 0.037" (0.64mm ~ 0.94mm) Standard Tail Solder | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | 0.025" (0.64mm) |
| Accepts Pin Diameter | 0.025" ~ 0.037" (0.64mm ~ 0.94mm) |
