0138-0-15-80-30-27-04-0

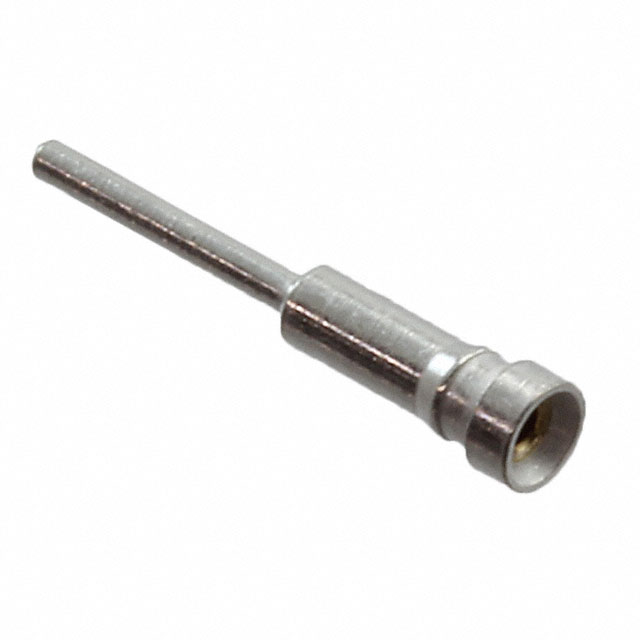

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0138-0-15-80-30-27-04-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0138-0-15-80-30-27-04-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0138-0-15-80-30-27-04-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.419 | $0.368 | $0.347 | $0.332 | $0.318 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.289 | $0.26 | $0.231 | $0.209 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0138-0-15-80-30-27-04-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT | Lead Free Status / RoHS Status | RoHS Compliant |
| Quantity Available | 107620 pcs | Data sheet | Pin Receptacles (metric)Pin Receptacles (in.) |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Tail Type | Standard Tail | Tail Diameter | 0.025" (0.64mm) |
| Socket Depth | 0.150" (3.81mm) | Series | 0138 |
| RoHS Status | RoHS Compliant | Pin Hole Diameter | 0.043" (1.09mm) |
| Packaging | Bulk | Other Names | 0138-0-15-80-30-27-04-0-ND ED11294 |
| Operating Temperature | -55°C ~ 125°C | Mounting Hole Diameter | 0.057" (1.45mm) |
| Moisture Sensitivity Level (MSL) | Not Applicable | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.400" (10.16mm) | Insertion Force | - |
| Flange Diameter | 0.072" (1.83mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Press-Fit | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Pin Diameter | 0.015" ~ 0.025" (0.38mm ~ 0.64mm) |
