Home > Products > Transformers > Switching Converter, SMPS Transformers > 760875142

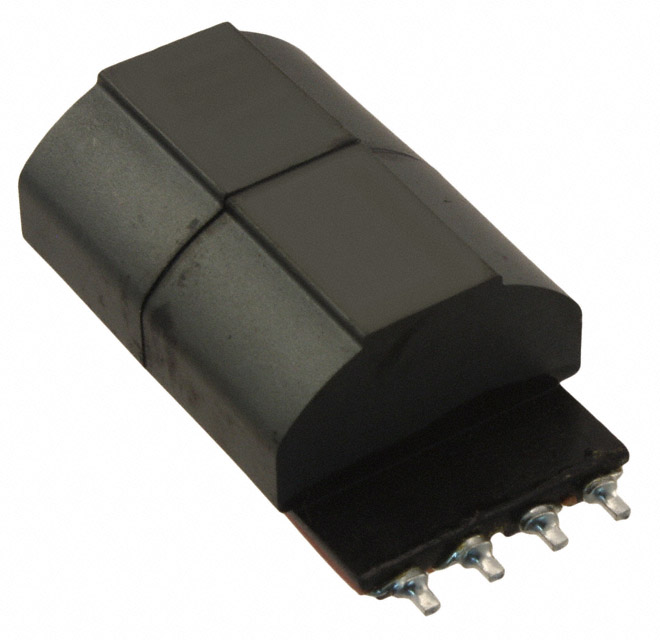

760875142

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 760875142 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	760875142
Manufacturer	Midcom / Wurth Electronics
Description	TRANS 4500V SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 8806 pcs
Reference Price (In US Dollars)	100 pcs
Reference Price (In US Dollars)	$3.99

Product parameter
Data sheet

Product parameter

Part Number	760875142	Manufacturer	Midcom / Wurth Electronics
Description	TRANS 4500V SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8806 pcs	Data sheet	760875142 Drawing
Category	Transformers	Voltage - Primary	280 ~ 380V
Voltage - Isolation	4500Vrms	Voltage - Auxiliary	19V @ 20mA
Type	-	Size / Dimension	0.740" L x 1.319" W (18.80mm x 33.50mm)
Series	WE-FB, MID-OLT8	Packaging	Tape & Reel (TR)
Other Names	732-3322-2	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Intended Chipset	-	Inductance @ Frequency	2.5mH @ 10kHz
Height - Seated (Max)	0.477" (12.12mm)	Frequency	85kHz
Footprint	0.740" L x 1.437" W (18.80mm x 36.50mm)	Chipset Manufacturer	-
Applications	LED Drivers, AC/DC SMPS
