Home > Products > Transformers > Switching Converter, SMPS Transformers > 750845150

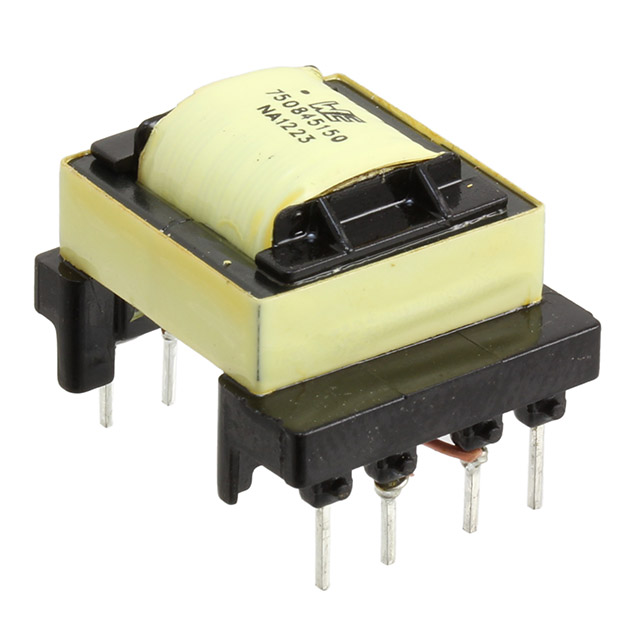

750845150

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 750845150 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	750845150
Manufacturer	Midcom / Wurth Electronics
Description	PWR XFRM LM3440
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 16436 pcs
Reference Price (In US Dollars)	70 pcs
Reference Price (In US Dollars)	$2.164

Product parameter
Data sheet

Product parameter

Part Number	750845150	Manufacturer	Midcom / Wurth Electronics
Description	PWR XFRM LM3440	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16436 pcs	Data sheet	750845150 Drawing
Category	Transformers	Voltage - Primary	196 ~ 264V
Voltage - Isolation	3000Vrms	Voltage - Auxiliary	22V @ 10mA
Type	For AC/DC Converters	Size / Dimension	0.744" L x 0.862" W (18.90mm x 21.90mm)
Series	WE-FB, MID-OLTI	Packaging	Tray
Other Names	1297-1062	Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Intended Chipset	TPS92310	Inductance @ Frequency	2.7mH @ 100kHz
Height - Seated (Max)	0.605" (15.37mm)	Frequency	100kHz
Footprint	0.744" L x 0.862" W (18.90mm x 21.90mm)	Chipset Manufacturer	Texas Instruments
Applications	LED Drivers, AC/DC SMPS
