Home > Products > Transformers > Switching Converter, SMPS Transformers > 750813550

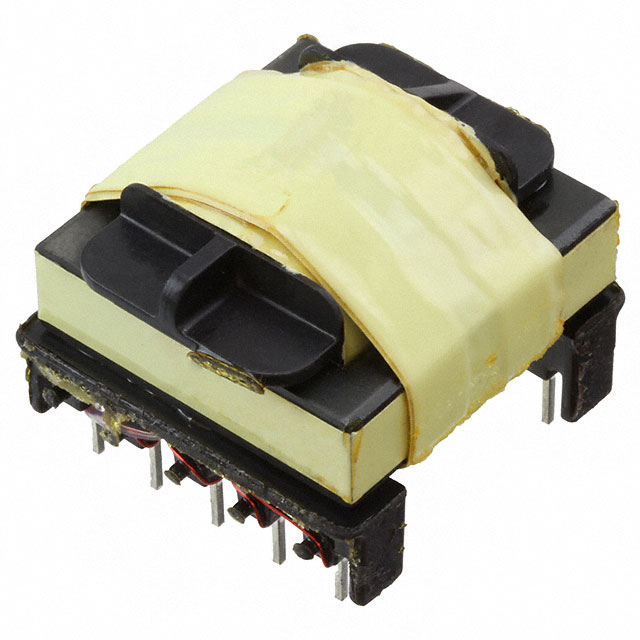

750813550

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 750813550 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	750813550
Manufacturer	Midcom / Wurth Electronics
Description	OFFLINE XFRM WE-UNIT TI LM3450
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 8834 pcs
Reference Price (In US Dollars)	16 pcs
Reference Price (In US Dollars)	$3.918

Product parameter
Data sheet

Product parameter

Part Number	750813550	Manufacturer	Midcom / Wurth Electronics
Description	OFFLINE XFRM WE-UNIT TI LM3450	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8834 pcs	Data sheet	750813550 Drawing
Category	Transformers	Voltage - Primary	120 ~ 191V
Voltage - Isolation	3000Vrms	Voltage - Auxiliary	12.5V @ 80mA
Type	For AC/DC Converters	Size / Dimension	1.125" L x 1.150" W (28.58mm x 29.21mm)
Series	WE-UNIT, MID-OLTI	Packaging	Tray
Other Names	1297-1059	Operating Temperature	-
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Intended Chipset	-	Inductance @ Frequency	1.02mH @ 10kHz
Height - Seated (Max)	0.905" (22.99mm)	Frequency	55 ~ 85kHz
Footprint	1.125" L x 1.150" W (28.58mm x 29.21mm)	Chipset Manufacturer	-
Applications	LED Drivers, AC/DC SMPS
