750811023

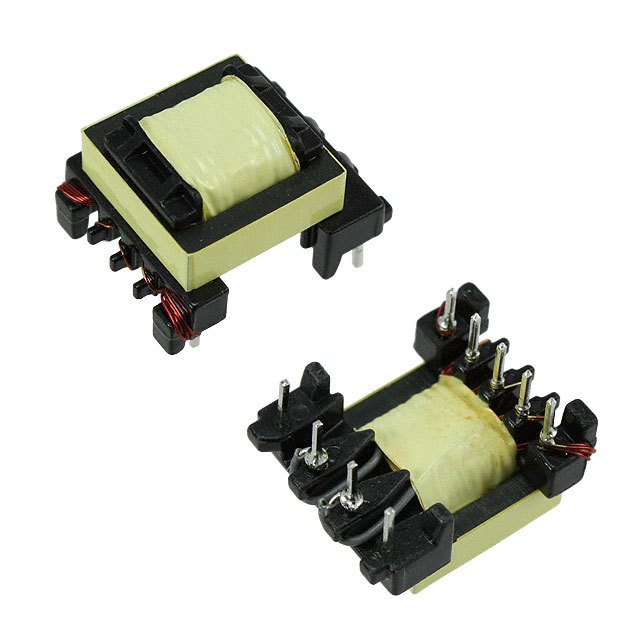

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 750811023 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 750811023 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 750811023 |
|---|---|
| Manufacturer | Midcom / Wurth Electronics |
| Description | TRANS OFF LINE POWER PI LNK603 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 500 pcs |
|---|---|---|---|---|---|
| $3.213 | $3.174 | $2.975 | $2.678 | $2.38 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 750811023 | Manufacturer | Midcom / Wurth Electronics |
|---|---|---|---|
| Description | TRANS OFF LINE POWER PI LNK603 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13901 pcs | Data sheet | 750811023 |
| Category | Transformers | Voltage - Primary | 120 ~ 375V |
| Voltage - Isolation | 4000Vrms | Voltage - Auxiliary | - |
| Type | For AC/DC Converters | Size / Dimension | - |
| Series | WE-UNIT, MID-OLPI | Packaging | Tray |
| Other Names | 732-2245 | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Intended Chipset | LNK603 | Inductance @ Frequency | 2.28mH @ 10kHz |
| Height - Seated (Max) | 0.635" (16.13mm) | Frequency | 66kHz |
| Footprint | 0.800" L x 0.960" W (20.32mm x 24.38mm) | Chipset Manufacturer | Power Integrations |
| Applications | Flyback Converters |
