750316794

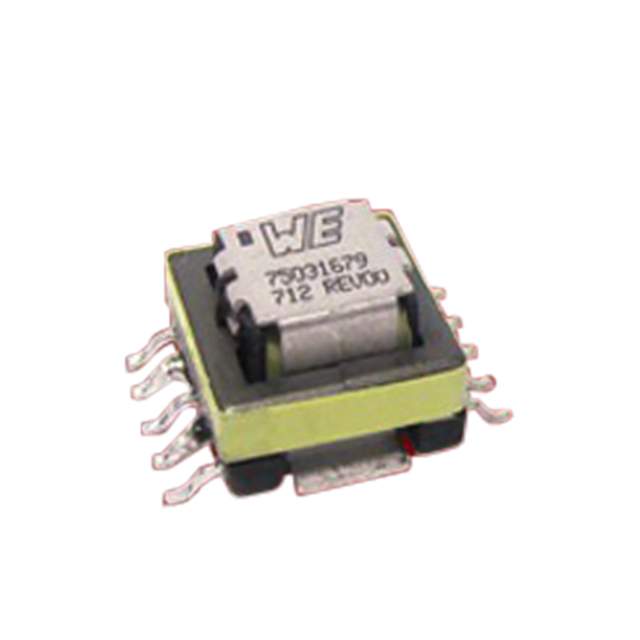

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 750316794 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 750316794 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 750316794 |
|---|---|
| Manufacturer | Midcom / Wurth Electronics |
| Description | CURRENT SENSE TRANSFORMER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.333 | $1.125 | $0.889 | $0.786 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 750316794 | Manufacturer | Midcom / Wurth Electronics |
|---|---|---|---|
| Description | CURRENT SENSE TRANSFORMER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48307 pcs | Data sheet | 750316794 Drawing |
| Category | Transformers | Weight | - |
| Type | Invasive | Turns Ratio - Primary:Secondary | 1:100 |
| Termination Style | Gull Wing | Size / Dimension | 0.570" L x 0.795" W (14.48mm x 20.20mm) |
| Series | - | Ratings | - |
| Packaging | Original-Reel® | Other Names | 1297-1323-6 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 5.6mH | Height - Seated (Max) | 0.413" (10.50mm) |
| Frequency Range | 50kHz ~ 500kHz | Energy Time (E.T.) | - |
| Detailed Description | 1:100 Current Sense Transformer 50kHz ~ 500kHz 280 mOhm 5.6mH Surface Mount | DC Resistance (DCR) | 280 mOhm |
| Current Ratio | - |
