Home > Products > Transformers > Switching Converter, SMPS Transformers > 750311691

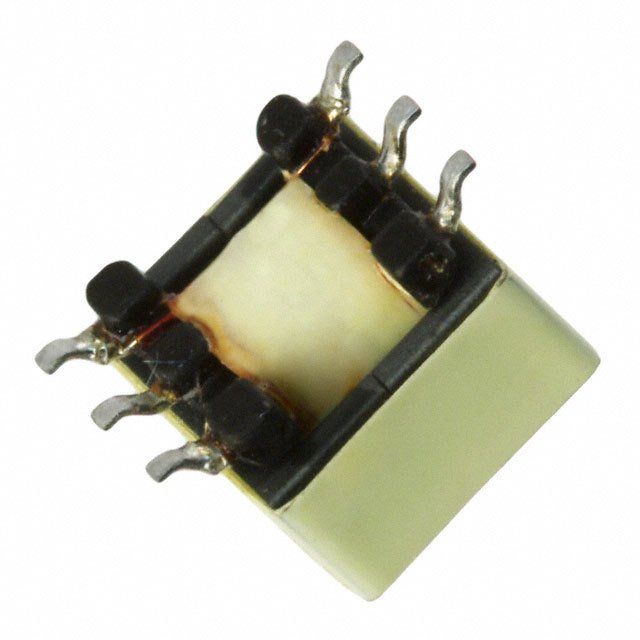

750311691

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 750311691 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	750311691
Manufacturer	Midcom / Wurth Electronics
Description	TRANS FLYBACK LT3748 60UH SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 20908 pcs
Reference Price (In US Dollars)	800 pcs
Reference Price (In US Dollars)	$1.443

Product parameter
Data sheet

Product parameter

Part Number	750311691	Manufacturer	Midcom / Wurth Electronics
Description	TRANS FLYBACK LT3748 60UH SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20908 pcs	Data sheet	Passive Components Prod Catalog 750311691
Category	Transformers	Voltage - Primary	8 ~ 15V
Voltage - Isolation	1500Vrms	Voltage - Auxiliary	-
Type	For DC/DC Converters	Size / Dimension	-
Series	WE-FB	Packaging	Tape & Reel (TR)
Other Names	732-2620-2	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Intended Chipset	LT3573, LT3574, LT3575, LT3748	Inductance @ Frequency	60µH @ 100kHz
Height - Seated (Max)	0.225" (5.72mm)	Frequency	200kHz
Footprint	0.260" L x 0.325" W (6.60mm x 8.26mm)	Chipset Manufacturer	Linear Technology
Applications	Flyback Converters
