Home > Products > Transformers > Switching Converter, SMPS Transformers > 750311019

750311019

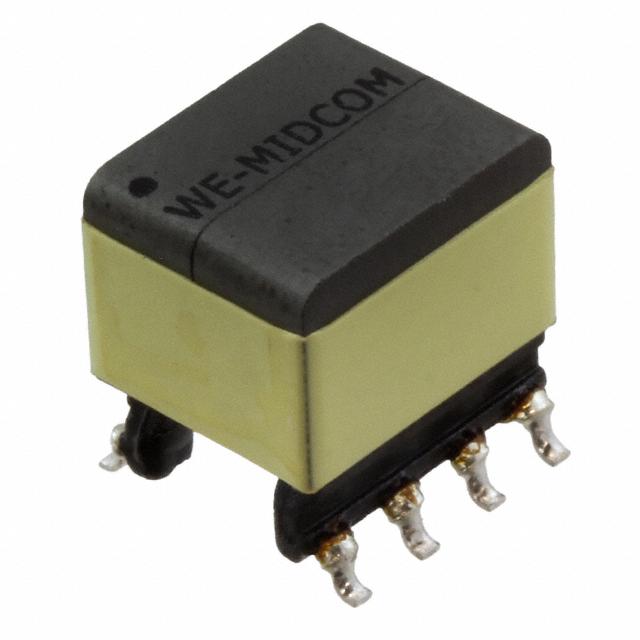

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 750311019 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	750311019
Manufacturer	Midcom / Wurth Electronics
Description	FLYBACK TRANSFORMER WE-FB LT8300
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 26274 pcs
Reference Price (In US Dollars)	300 pcs
Reference Price (In US Dollars)	$1.376

Product parameter
Data sheet

Product parameter

Part Number	750311019	Manufacturer	Midcom / Wurth Electronics
Description	FLYBACK TRANSFORMER WE-FB LT8300	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	26274 pcs	Data sheet	750311019 Drawing
Category	Transformers	Voltage - Primary	35 ~ 75V
Voltage - Isolation	1500Vrms	Voltage - Auxiliary	6.6V
Type	For DC/DC Converters	Size / Dimension	-
Series	WE-FB, MID-FLYLT	Packaging	Tape & Reel (TR)
Other Names	1297-1118-2	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Intended Chipset	LT8300	Inductance @ Frequency	400µH @ 10kHz
Height - Seated (Max)	0.415" (10.54mm)	Frequency	200 ~ 300kHz
Footprint	0.385" L x 0.360" W (9.78mm x 9.14mm)	Chipset Manufacturer	Linear Technology
Applications	Flyback Converters
