Home > Products > Transformers > Switching Converter, SMPS Transformers > 750310084

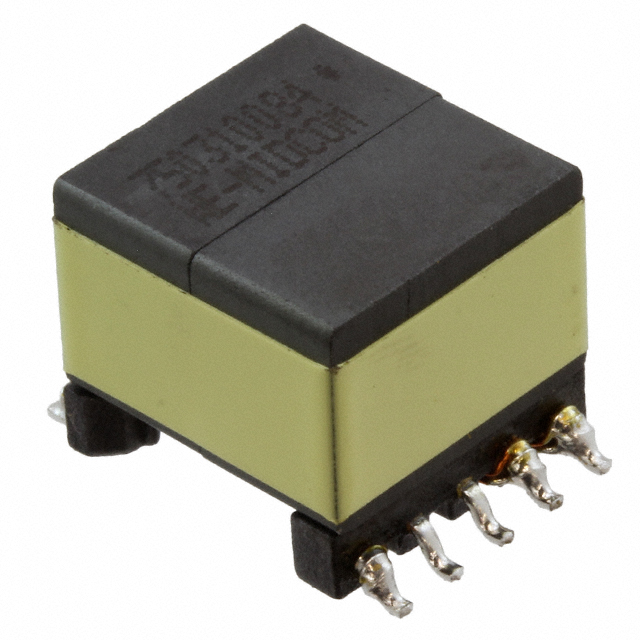

750310084

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 750310084 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	750310084
Manufacturer	Midcom / Wurth Electronics
Description	FLYBACK XFRM WE-FB BROADCOM
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 43513 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$0.873	$0.86	$0.807	$0.726

Product parameter
Data sheet

Product parameter

Part Number	750310084	Manufacturer	Midcom / Wurth Electronics
Description	FLYBACK XFRM WE-FB BROADCOM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	43513 pcs	Data sheet	750310084
Category	Transformers	Voltage - Primary	10V
Voltage - Isolation	500Vrms	Voltage - Auxiliary	-
Type	For DC/DC Converters	Size / Dimension	-
Series	WE-FB	Packaging	Cut Tape (CT)
Other Names	1297-1001-1	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Intended Chipset	-	Inductance @ Frequency	2.7µH @ 100kHz
Height - Seated (Max)	0.505" (12.83mm)	Frequency	-
Footprint	0.530" L x 0.699" W (13.46mm x 17.75mm)	Chipset Manufacturer	-
Applications	Flyback Converters
