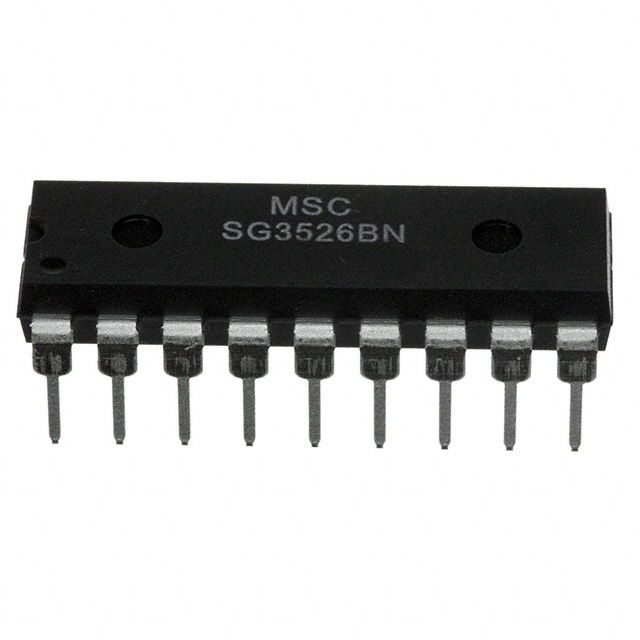

SG3526BN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SG3526BN with confidence from Components-World.HK, 1 Year Warranty
Dowload SG3526BN Details in PDFSee Product Specifications for product details.
Buy SG3526BN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SG3526BN |
|---|---|
| Manufacturer | Microsemi |
| Description | IC REG CTRLR BUCK/FLYBACK 18DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SG3526BN | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IC REG CTRLR BUCK/FLYBACK 18DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4811 pcs | Data sheet | SG1526B,2526B,3526B |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 8 V ~ 35 V |
| Topology | Buck, Flyback | Synchronous Rectifier | Yes |
| Supplier Device Package | 18-PDIP | Series | - |
| Serial Interfaces | - | Packaging | Tube |
| Package / Case | 18-DIP (0.300", 7.62mm) | Output Type | Transistor Driver |
| Output Phases | 1 | Output Configuration | Positive |
| Other Names | SG3526BNR SG3526BNR-ND |
Operating Temperature | 0°C ~ 70°C (TA) |
| Number of Outputs | 2 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Function | Step-Down, Step-Up/Step-Down |
| Frequency - Switching | 1Hz ~ 500kHz | Duty Cycle (Max) | 49% |
| Detailed Description | Buck, Flyback Regulator Positive Output Step-Down, Step-Up/Step-Down DC-DC Controller IC 18-PDIP | Control Features | Dead Time Control, Enable, Frequency Control, Reset, Soft Start |
| Clock Sync | No | Base Part Number | SG*526 |
