SG2023J-883B

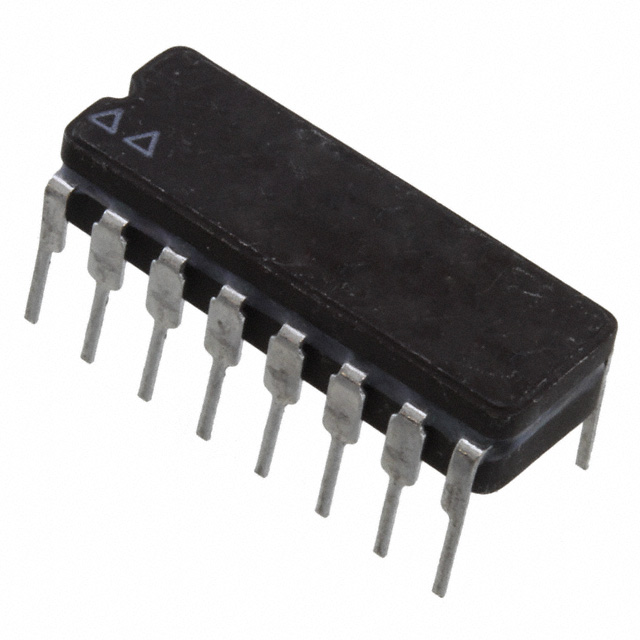

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SG2023J-883B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SG2023J-883B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SG2023J-883B |
|---|---|
| Manufacturer | Microsemi |
| Description | TRANS 7NPN DARL 95V 0.5A 16JDIP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SG2023J-883B | Manufacturer | Microsemi |
|---|---|---|---|
| Description | TRANS 7NPN DARL 95V 0.5A 16JDIP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4640 pcs | Data sheet | SG2000 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 95V |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 500µA, 350mA | Transistor Type | 7 NPN Darlington |
| Supplier Device Package | 16-CDIP | Series | - |
| Power - Max | - | Packaging | Tube |
| Package / Case | - | Other Names | 1259-1109 1259-1109-MIL |
| Operating Temperature | 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Frequency - Transition | - | Detailed Description | Bipolar (BJT) Transistor Array 7 NPN Darlington 95V 500mA Through Hole 16-CDIP |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 350mA, 2V | Current - Collector Cutoff (Max) | - |
| Current - Collector (Ic) (Max) | 500mA |
