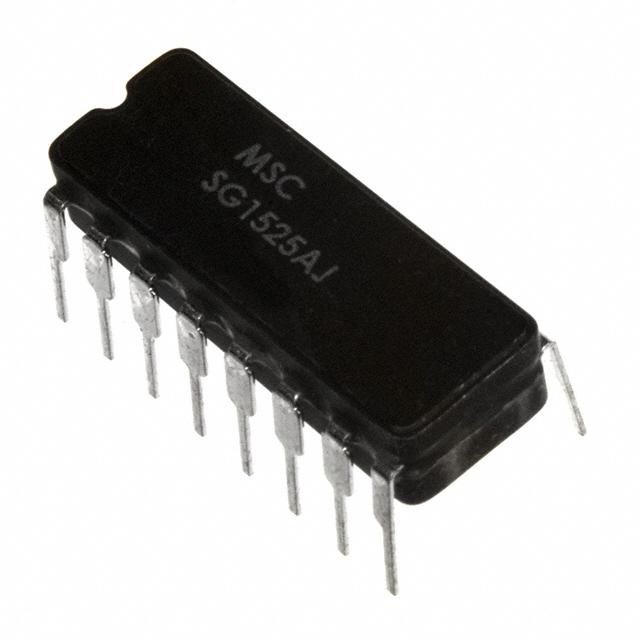

SG1525AJ-883B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SG1525AJ-883B with confidence from Components-World.HK, 1 Year Warranty
Dowload SG1525AJ-883B Details in PDFSee Product Specifications for product details.
Buy SG1525AJ-883B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SG1525AJ-883B |
|---|---|
| Manufacturer | Microsemi |
| Description | IC REG CTRLR PUSH-PULL 16JDIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SG1525AJ-883B | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IC REG CTRLR PUSH-PULL 16JDIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4703 pcs | Data sheet | SG(15,25,35)25A,27A |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 8 V ~ 35 V |
| Topology | Push-Pull | Synchronous Rectifier | Yes |
| Supplier Device Package | 16-CERDIP | Series | - |
| Serial Interfaces | - | Packaging | Tube |
| Package / Case | 16-CDIP (0.300", 7.62mm) | Output Type | Transistor Driver |
| Output Phases | 1 | Output Configuration | Positive |
| Other Names | 1259-1059 1259-1059-MIL SG1525AJ883B |
Operating Temperature | -55°C ~ 125°C (TA) |
| Number of Outputs | 2 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Function | Step-Up/Step-Down |
| Frequency - Switching | 100Hz ~ 350kHz | Duty Cycle (Max) | 49% |
| Detailed Description | Push-Pull Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 16-CERDIP | Control Features | Enable, Frequency Control, Soft Start |
| Clock Sync | Yes |
