SG137AT

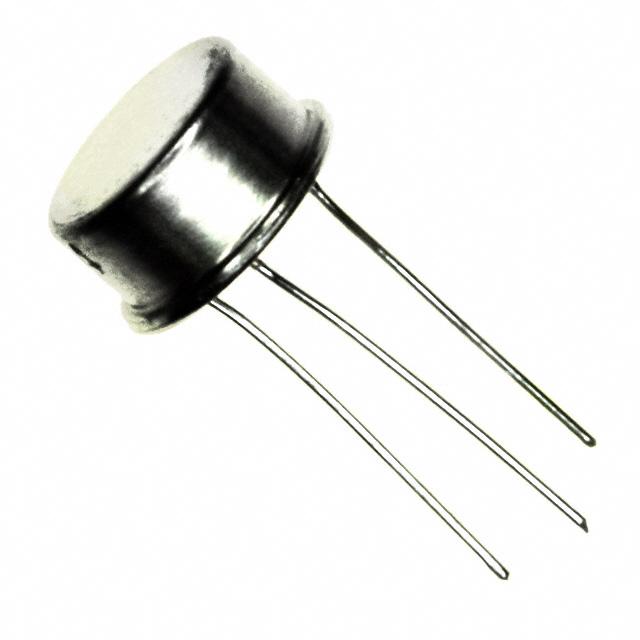

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SG137AT with confidence from Components-World.HK, 1 Year Warranty
Dowload SG137AT Details in PDFSee Product Specifications for product details.
Buy SG137AT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SG137AT |
|---|---|
| Manufacturer | Microsemi |
| Description | IC REG LINEAR NEG ADJ 500MA TO99 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $9.883 | $9.142 | $8.40 | $7.807 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SG137AT | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IC REG LINEAR NEG ADJ 500MA TO99 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3850 pcs | Data sheet | SG137(A) |
| Category | Integrated Circuits (ICs) | Voltage Dropout (Max) | - |
| Voltage - Output (Min/Fixed) | -1.25V | Voltage - Output (Max) | -36V |
| Voltage - Input (Max) | -36V | Supplier Device Package | TO-99 |
| Series | - | Protection Features | Over Current, Over Temperature, Over Voltage |
| Packaging | Bulk | Package / Case | TO-205AD, TO-39-3 Metal Can |
| PSRR | 66dB ~ 80dB (120Hz) | Output Type | Adjustable |
| Output Configuration | Negative | Other Names | 1259-1025 1259-1025-MIL |
| Operating Temperature | -55°C ~ 125°C | Number of Regulators | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Detailed Description | Linear Voltage Regulator IC Negative Adjustable 1 Output -1.25 V ~ -36 V 500mA TO-99 |
| Current - Output | 500mA | Control Features | - |
| Base Part Number | SG137 |
