PD70224ILQ-TR

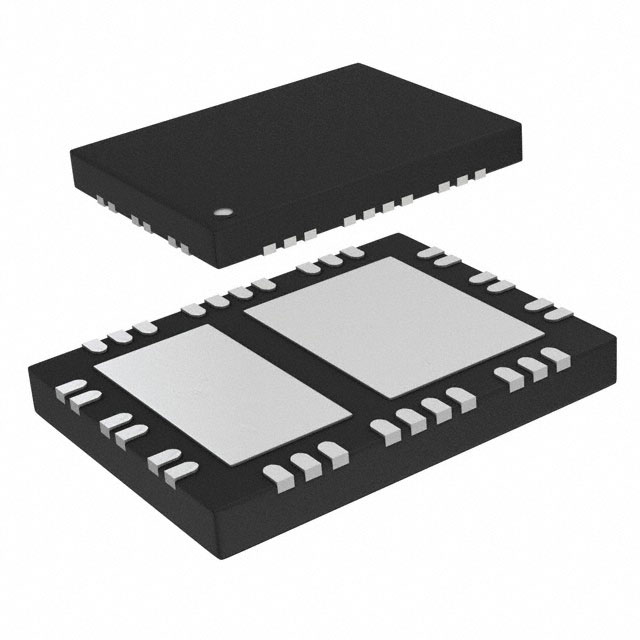

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PD70224ILQ-TR with confidence from Components-World.HK, 1 Year Warranty
Dowload PD70224ILQ-TR Details in PDFSee Product Specifications for product details.
Buy PD70224ILQ-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PD70224ILQ-TR |
|---|---|
| Manufacturer | Microsemi |
| Description | IC BRIDGE RECT FET BASED 40MLPQ |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $2.46 | $2.213 | $2.017 | $1.82 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $1.672 | $1.525 | $1.328 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PD70224ILQ-TR | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IC BRIDGE RECT FET BASED 40MLPQ | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24123 pcs | Data sheet | PD70224 |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 57V (Max) |
| Type | Bridge Rectifier | Supplier Device Package | 40-QFN (6x8) |
| Series | - | Ratio - Input:Output | Bridge (2) |
| Packaging | Cut Tape (CT) | Package / Case | 40-VFQFN Exposed Pad, 32 Leads |
| Other Names | PD70224ILQ-CT | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Yes | FET Type | N-Channel |
| Detailed Description | OR Controller Bridge Rectifier N-Channel Bridge (2) 40-QFN (6x8) | Current - Supply | 900µA |
| Current - Output (Max) | 1.5A | Applications | Power Over Ethernet (PoE) |
