MX5KP26AE3

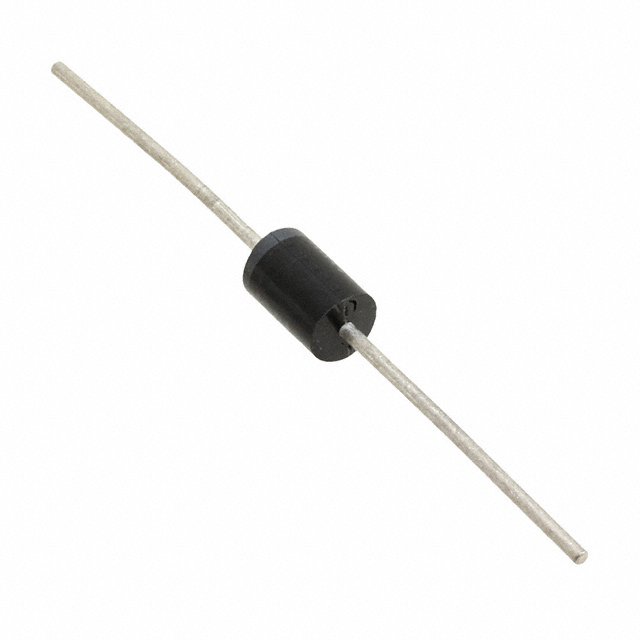

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MX5KP26AE3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MX5KP26AE3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MX5KP26AE3 |
|---|---|
| Manufacturer | Microsemi |
| Description | TVS DIODE 26V 42.1V CASE 5A |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $13.086 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MX5KP26AE3 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | TVS DIODE 26V 42.1V CASE 5A | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 2333 pcs | Data sheet | M5KP5.0A - 110CA(e3) |
| Category | Circuit Protection | Voltage - Reverse Standoff (Typ) | 26V |
| Voltage - Clamping (Max) @ Ipp | 42.1V | Voltage - Breakdown (Min) | 28.9V |
| Unidirectional Channels | 1 | Type | Zener |
| Supplier Device Package | Case 5A (DO-204AR) | Series | Military, MIL-PRF-19500 |
| Power Line Protection | No | Power - Peak Pulse | 5000W (5kW) |
| Packaging | Bulk | Package / Case | DO-204AR, Axial |
| Other Names | 1086-9488 1086-9488-MIL |
Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Current - Peak Pulse (10/1000µs) | 119A |
| Capacitance @ Frequency | - | Applications | General Purpose |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
