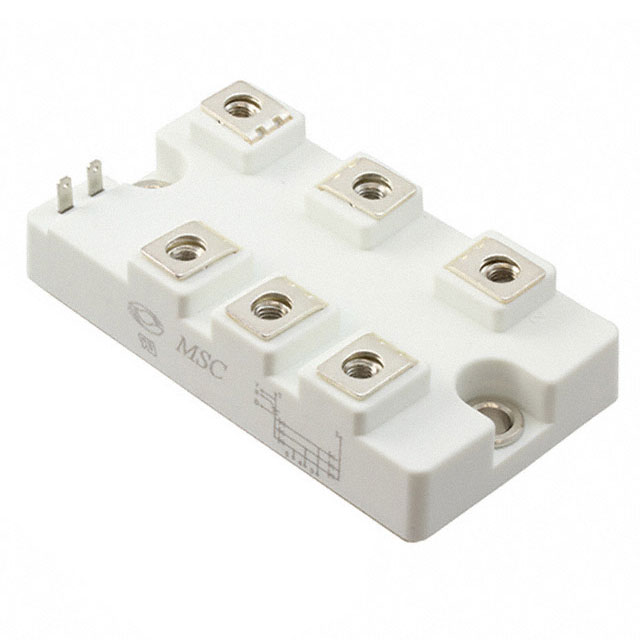

MSDT100-16
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MSDT100-16 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MSDT100-16 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MSDT100-16 |
|---|---|
| Manufacturer | Microsemi |
| Description | PWR MOD THYRISTOR 1600V 100V SM4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | MSDT100-16 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | PWR MOD THYRISTOR 1600V 100V SM4 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3977 pcs | Data sheet | |
| Category | Discrete Semiconductor Products | Voltage - Off State | 1.6kV |
| Voltage - Gate Trigger (Vgt) (Max) | 3V | Structure | Bridge, 3-Phase - SCRs/Diodes |
| Series | - | Packaging | Bulk |
| Package / Case | M4 Module | Operating Temperature | -40°C ~ 150°C (TJ) |
| Number of SCRs, Diodes | 1 SCR, 6 Diodes | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | SCR Module 1.6kV Bridge, 3-Phase - SCRs/Diodes Chassis Mount M4 Module | Current - On State (It (AV)) (Max) | 100A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1200A @ 50Hz | Current - Gate Trigger (Igt) (Max) | 150mA |
