MSD160-18

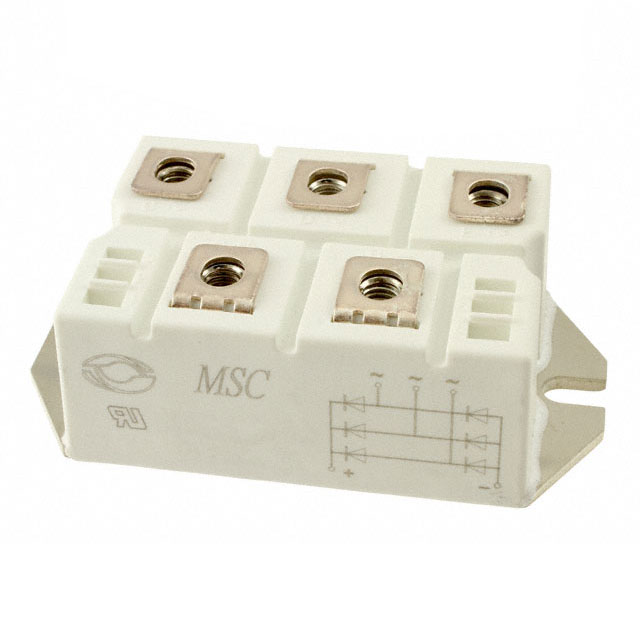

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MSD160-18 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MSD160-18 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MSD160-18 |
|---|---|
| Manufacturer | Microsemi |
| Description | MOD BRIDGE 3PH 1800V 160A M3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $18.156 | $17.087 | $16.019 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MSD160-18 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | MOD BRIDGE 3PH 1800V 160A M3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2381 pcs | Data sheet | MSD160 |
| Category | Discrete Semiconductor Products | Voltage - Peak Reverse (Max) | 1.8kV |
| Voltage - Forward (Vf) (Max) @ If | 1.65V @ 300A | Technology | Standard |
| Supplier Device Package | M3 | Series | - |
| Packaging | Bulk | Package / Case | M3 |
| Operating Temperature | -40°C ~ 150°C (TJ) | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Three Phase | Detailed Description | Bridge Rectifier Three Phase Standard 1.8kV Chassis Mount M3 |
| Current - Reverse Leakage @ Vr | 500µA @ 1800V | Current - Average Rectified (Io) | 160A |
