LX7302CLQ-TR

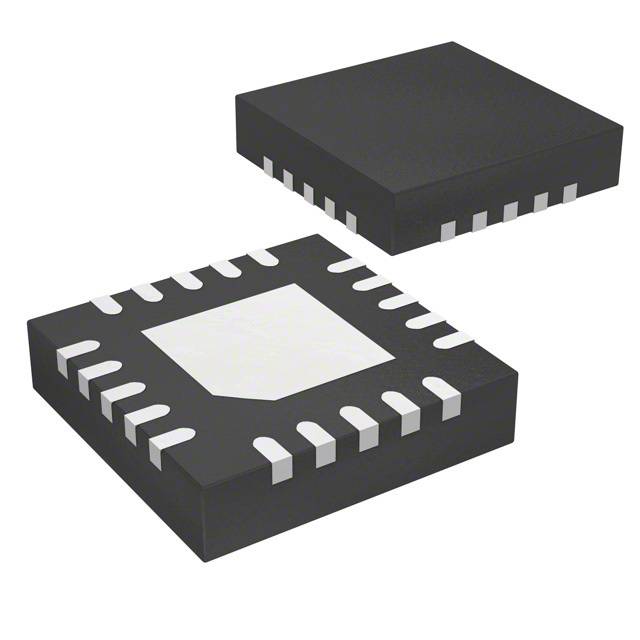

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LX7302CLQ-TR with confidence from Components-World.HK, 1 Year Warranty
Dowload LX7302CLQ-TR Details in PDFSee Product Specifications for product details.
Buy LX7302CLQ-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LX7302CLQ-TR |
|---|---|
| Manufacturer | Microsemi |
| Description | IC REG CTRLR BUCK 20QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.532 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | LX7302CLQ-TR | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IC REG CTRLR BUCK 20QFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65418 pcs | Data sheet | LX7302 |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 5 V ~ 26 V |
| Topology | Buck | Synchronous Rectifier | Yes |
| Supplier Device Package | 20-QFN (3x3) | Series | - |
| Serial Interfaces | - | Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFQFN Exposed Pad | Output Type | Transistor Driver |
| Output Phases | 1 | Output Configuration | Positive |
| Other Names | LX7302ILQ-TR LX7302ILQ-TR-ND |
Operating Temperature | 0°C ~ 85°C (TA) |
| Number of Outputs | 1 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Function | Step-Down | Frequency - Switching | 200kHz ~ 1MHz |
| Duty Cycle (Max) | - | Detailed Description | Buck Regulator Positive Output Step-Down DC-DC Controller IC 20-QFN (3x3) |
| Control Features | Current Limit, Enable, On Time Control, Power Good | Clock Sync | No |
| Base Part Number | LX7302 |
