Home > Products > RF/IF and RFID > RF Amplifiers > LX5563LL-TR

LX5563LL-TR

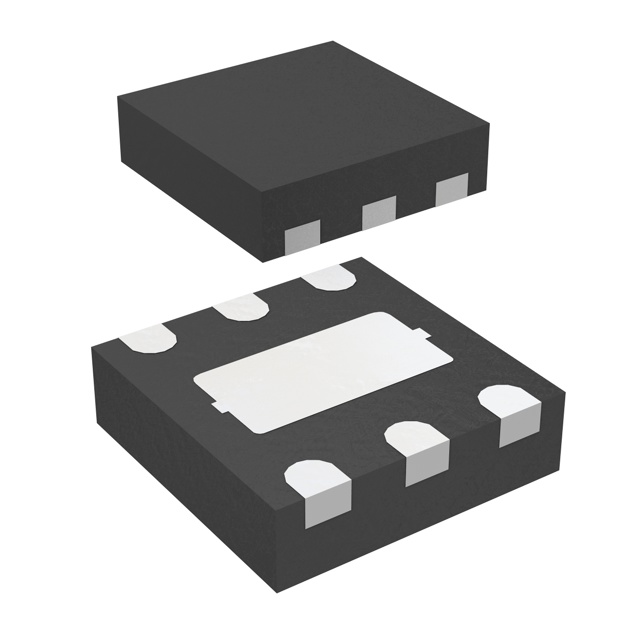

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LX5563LL-TR with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LX5563LL-TR
Manufacturer	Microsemi
Description	IC RF AMP GP 2.4GHZ 6DFN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 187093 pcs
Reference Price (In US Dollars)	3000 pcs
Reference Price (In US Dollars)	$0.129

Product parameter
Data sheet

Product parameter

Part Number	LX5563LL-TR	Manufacturer	Microsemi
Description	IC RF AMP GP 2.4GHZ 6DFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	187093 pcs	Data sheet	LX5563
Category	RF/IF and RFID	Voltage - Supply	3 V ~ 3.6 V
Test Frequency	-	Supplier Device Package	6-DFN (1.5x1.5)
Series	-	RF Type	General Purpose
Packaging	Tape & Reel (TR)	Package / Case	6-XFDFN Exposed Pad
P1dB	-3dBm	Noise Figure	1.3dB
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Gain	14dB
Frequency	2.4GHz	Detailed Description	RF Amplifier IC General Purpose 2.4GHz 6-DFN (1.5x1.5)
Current - Supply	-
