LX1671CLQ

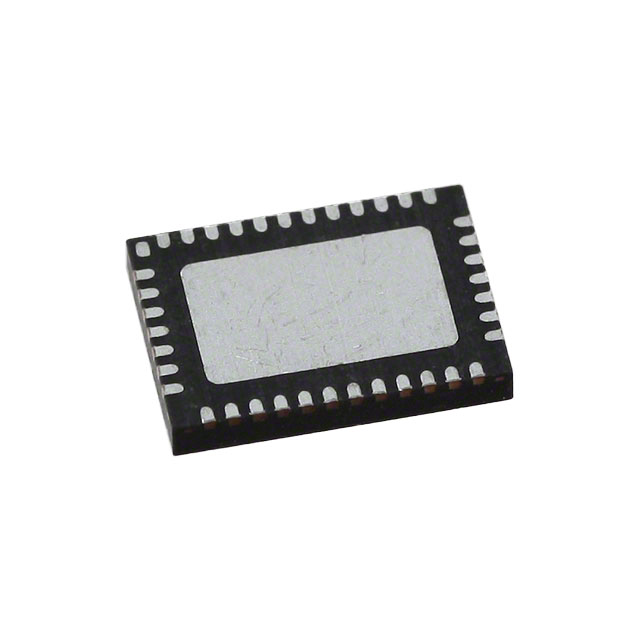

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LX1671CLQ with confidence from Components-World.HK, 1 Year Warranty
Dowload LX1671CLQ Details in PDFSee Product Specifications for product details.
Buy LX1671CLQ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LX1671CLQ |
|---|---|
| Manufacturer | Microsemi |
| Description | IC REG CTRLR BUCK 38MLPQ |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $2.394 | $2.153 | $1.962 | $1.77 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $1.627 | $1.483 | $1.292 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | LX1671CLQ | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IC REG CTRLR BUCK 38MLPQ | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27199 pcs | Data sheet | LX1671 |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 4.5 V ~ 5.5 V |
| Topology | Buck | Synchronous Rectifier | Yes |
| Supplier Device Package | 38-MLPQ (5x7) | Series | LoadSHARE™ |
| Serial Interfaces | - | Packaging | - |
| Package / Case | 38-VFQFN Exposed Pad | Output Type | Transistor Driver |
| Output Phases | 2 | Output Configuration | Positive |
| Operating Temperature | 0°C ~ 70°C (TA) | Number of Outputs | 4 |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Function | Step-Down | Frequency - Switching | 300kHz |
| Duty Cycle (Max) | 85% | Detailed Description | Buck Regulator Positive Output Step-Down DC-DC Controller IC 38-MLPQ (5x7) |
| Control Features | Current Limit, Enable, Soft Start | Clock Sync | No |
| Base Part Number | LX1671 |
