JANTXV2N5686

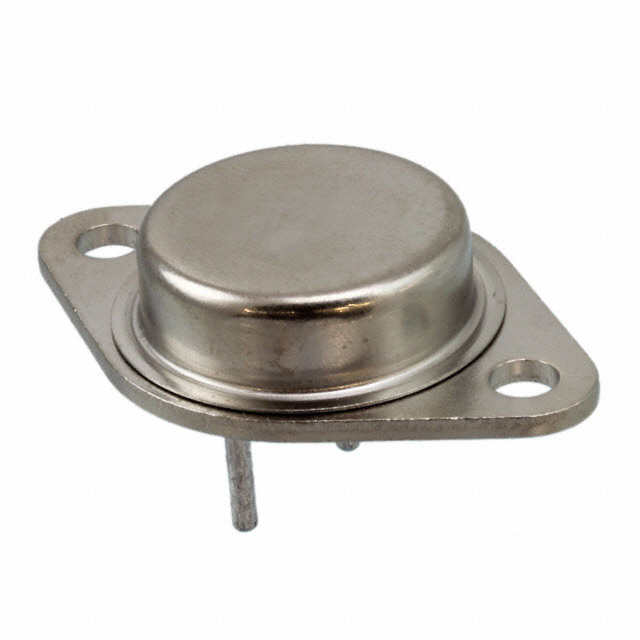

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JANTXV2N5686 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JANTXV2N5686 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JANTXV2N5686 |
|---|---|
| Manufacturer | Microsemi |
| Description | TRANS NPN 80V 50A TO-39 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $177.401 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JANTXV2N5686 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | TRANS NPN 80V 50A TO-39 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 171 pcs | Data sheet | 2N5685, 2N5686 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 80V |
| Vce Saturation (Max) @ Ib, Ic | 5V @ 10A, 50A | Transistor Type | NPN |
| Supplier Device Package | TO-3 | Series | Military, MIL-PRF-19500/464 |
| Power - Max | 300W | Packaging | Bulk |
| Package / Case | TO-204AE | Other Names | 1086-15604 1086-15604-MIL |
| Operating Temperature | -55°C ~ 200°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Frequency - Transition | - | Detailed Description | Bipolar (BJT) Transistor NPN 80V 50A 300W Through Hole TO-3 |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 15 @ 25A, 2V | Current - Collector Cutoff (Max) | 500µA |
| Current - Collector (Ic) (Max) | 50A |
