JANTXV2N3810U

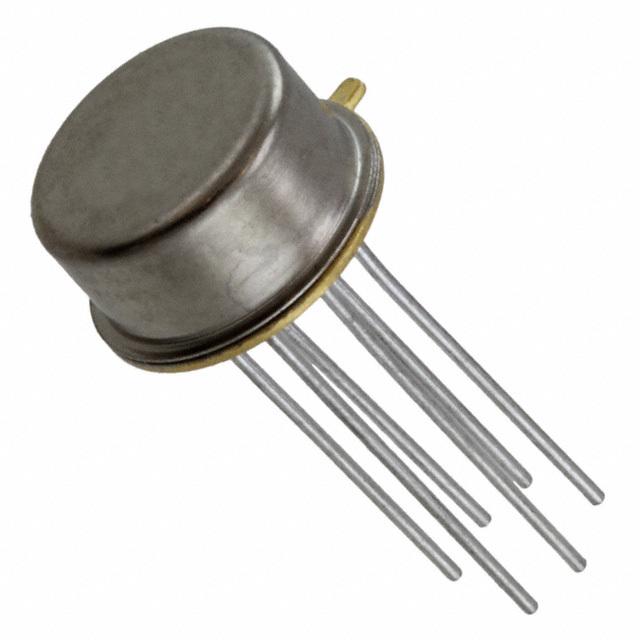

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JANTXV2N3810U with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JANTXV2N3810U with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JANTXV2N3810U |
|---|---|
| Manufacturer | Microsemi |
| Description | TRANS 2PNP 60V 0.05A |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $18.684 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JANTXV2N3810U | Manufacturer | Microsemi |
|---|---|---|---|
| Description | TRANS 2PNP 60V 0.05A | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 1615 pcs | Data sheet | 2N3810(L,U), 2N3811(L,U) |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 60V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 100µA, 1mA | Transistor Type | 2 PNP (Dual) |
| Supplier Device Package | TO-78-6 | Series | Military, MIL-PRF-19500/336 |
| Power - Max | 350mW | Packaging | Bulk |
| Package / Case | TO-78-6 Metal Can | Other Names | 1086-3088 1086-3088-MIL |
| Operating Temperature | -65°C ~ 200°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 23 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Frequency - Transition | - |
| Detailed Description | Bipolar (BJT) Transistor Array 2 PNP (Dual) 60V 50mA 350mW Through Hole TO-78-6 | DC Current Gain (hFE) (Min) @ Ic, Vce | 150 @ 1mA, 5V |
| Current - Collector Cutoff (Max) | 10µA (ICBO) | Current - Collector (Ic) (Max) | 50mA |
