JANTX2N5303

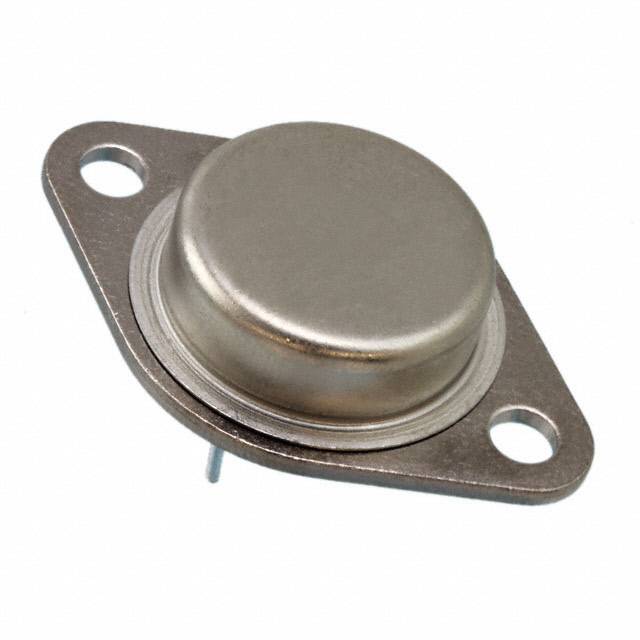

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JANTX2N5303 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JANTX2N5303 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JANTX2N5303 |
|---|---|
| Manufacturer | Microsemi |
| Description | TRANS NPN 80V 20A TO-3 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JANTX2N5303 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | TRANS NPN 80V 20A TO-3 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4960 pcs | Data sheet | JANTX(V) 2N5302-03 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 80V |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 4A, 20A | Transistor Type | NPN |
| Supplier Device Package | TO-3 (TO-204AA) | Series | Military, MIL-PRF-19500/456 |
| Power - Max | 5W | Packaging | Bulk |
| Package / Case | TO-204AA, TO-3 | Other Names | 1088-1023 1088-1023-MIL |
| Operating Temperature | - | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Frequency - Transition | - | Detailed Description | Bipolar (BJT) Transistor NPN 80V 20A 5W Through Hole TO-3 (TO-204AA) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 15 @ 10A, 2V | Current - Collector Cutoff (Max) | 10µA |
| Current - Collector (Ic) (Max) | 20A |
