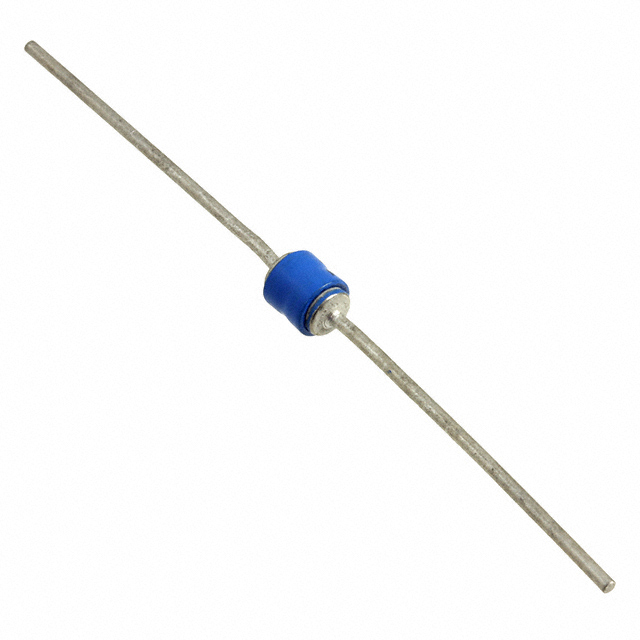

JANTX1N6146A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JANTX1N6146A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JANTX1N6146A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JANTX1N6146A |
|---|---|
| Manufacturer | Microsemi |
| Description | TVS DIODE 11.4V 21V C AXIAL |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $9.321 | $8.622 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JANTX1N6146A | Manufacturer | Microsemi |
|---|---|---|---|
| Description | TVS DIODE 11.4V 21V C AXIAL | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3700 pcs | Data sheet | 1N6138A - 1N6173A |
| Category | Circuit Protection | Voltage - Reverse Standoff (Typ) | 11.4V |
| Voltage - Clamping (Max) @ Ipp | 21V | Voltage - Breakdown (Min) | 14.25V |
| Type | Zener | Supplier Device Package | C, Axial |
| Series | Military, MIL-PRF-19500/516 | Power Line Protection | No |
| Power - Peak Pulse | 1500W (1.5kW) | Packaging | Bulk |
| Package / Case | G, Axial | Other Names | 1086-2590 1086-2590-MIL |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Current - Peak Pulse (10/1000µs) | 71.4A |
| Capacitance @ Frequency | - | Bidirectional Channels | 1 |
| Applications | General Purpose |
