JANTX1N6118A

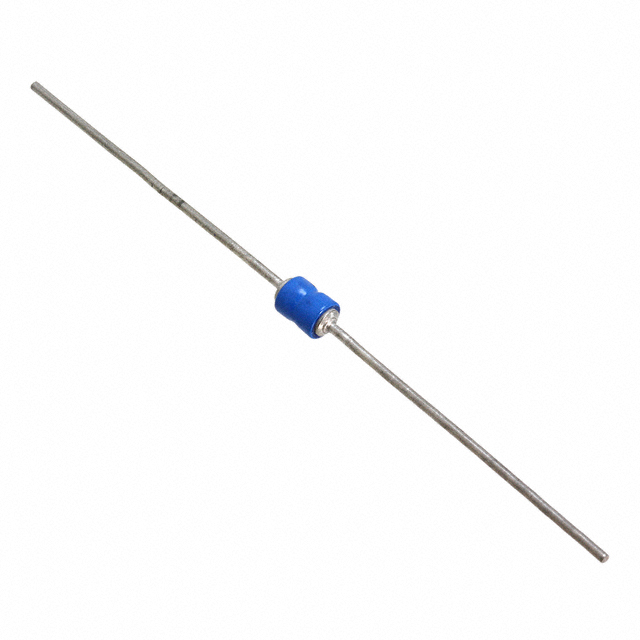

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JANTX1N6118A with confidence from Components-World.HK, 1 Year Warranty
Dowload JANTX1N6118A Details in PDFSee Product Specifications for product details.
Buy JANTX1N6118A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JANTX1N6118A |
|---|---|
| Manufacturer | Microsemi |
| Description | TVS DIODE 25.1V 45.7V |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $10.106 | $9.347 | $8.589 | $7.983 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JANTX1N6118A | Manufacturer | Microsemi |
|---|---|---|---|
| Description | TVS DIODE 25.1V 45.7V | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4690 pcs | Data sheet | 1N6103A-1N6137A |
| Category | Circuit Protection | Voltage - Reverse Standoff (Typ) | 25.1V |
| Voltage - Clamping (Max) @ Ipp | 45.7V | Voltage - Breakdown (Min) | 31.4V |
| Type | Zener | Supplier Device Package | - |
| Series | Military, MIL-PRF-19500/516 | Power Line Protection | No |
| Power - Peak Pulse | 500W | Packaging | Bulk |
| Package / Case | B, Axial | Other Names | 1086-1054 1086-1054-MIL |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Current - Peak Pulse (10/1000µs) | 10.9A | Capacitance @ Frequency | - |
| Bidirectional Channels | 1 | Applications | General Purpose |
