JANTX1N6113US

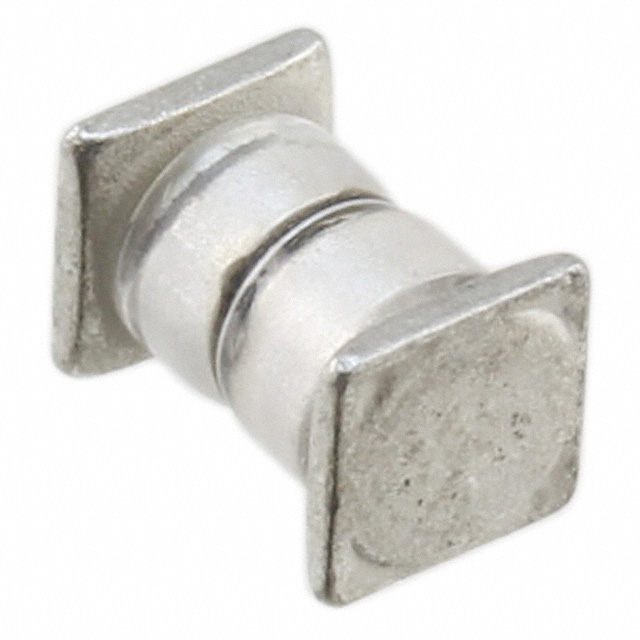

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JANTX1N6113US with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JANTX1N6113US with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JANTX1N6113US |
|---|---|
| Manufacturer | Microsemi |
| Description | TVS DIODE 15.2V 29.09V B SQ-MELF |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $8.874 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JANTX1N6113US | Manufacturer | Microsemi |
|---|---|---|---|
| Description | TVS DIODE 15.2V 29.09V B SQ-MELF | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4009 pcs | Data sheet | 1N6103US - 1N6137AUS |
| Category | Circuit Protection | Voltage - Reverse Standoff (Typ) | 15.2V |
| Voltage - Clamping (Max) @ Ipp | 29.09V | Voltage - Breakdown (Min) | 18.05V |
| Type | Zener | Supplier Device Package | B, SQ-MELF |
| Series | Military, MIL-PRF-19500/516 | Power Line Protection | No |
| Power - Peak Pulse | 500W | Packaging | Bulk |
| Package / Case | SQ-MELF, B | Other Names | 1086-2528 1086-2528-MIL |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Current - Peak Pulse (10/1000µs) | 17.1A | Capacitance @ Frequency | - |
| Bidirectional Channels | 1 | Applications | General Purpose |
