JANTX1N5811US

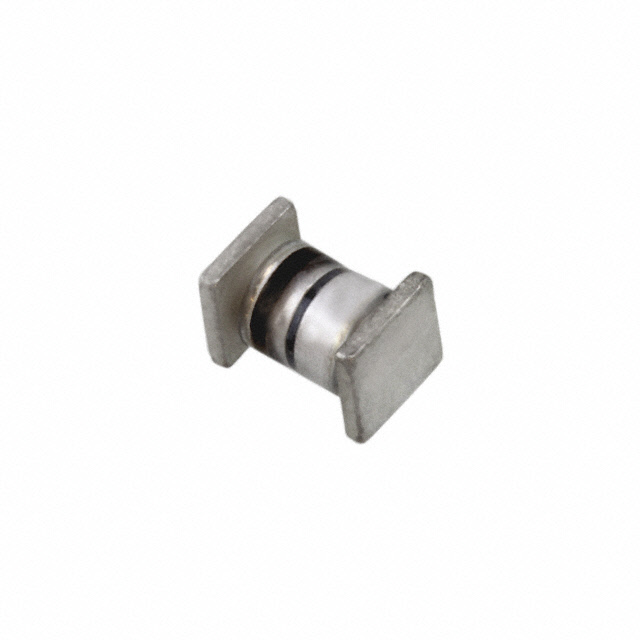

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JANTX1N5811US with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JANTX1N5811US with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JANTX1N5811US |
|---|---|
| Manufacturer | Microsemi |
| Description | DIODE GEN PURP 150V 3A B-MELF |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $5.577 | $5.07 | $4.309 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | JANTX1N5811US | Manufacturer | Microsemi |
|---|---|---|---|
| Description | DIODE GEN PURP 150V 3A B-MELF | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 8228 pcs | Data sheet | 1N5807,09,11 US/URS |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 875mV @ 4A |
| Voltage - DC Reverse (Vr) (Max) | 150V | Supplier Device Package | B, SQ-MELF |
| Speed | Fast Recovery = 200mA (Io) | Series | Military, MIL-PRF-19500/477 |
| Reverse Recovery Time (trr) | 30ns | Packaging | Bulk |
| Package / Case | SQ-MELF, B | Other Names | 1086-2485 1086-2485-MIL |
| Operating Temperature - Junction | -65°C ~ 175°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Diode Type | Standard |
| Detailed Description | Diode Standard 150V 3A Surface Mount B, SQ-MELF | Current - Reverse Leakage @ Vr | 5µA @ 150V |
| Current - Average Rectified (Io) | 3A | Capacitance @ Vr, F | 60pF @ 10V, 1MHz |
