JANTX1N5614US

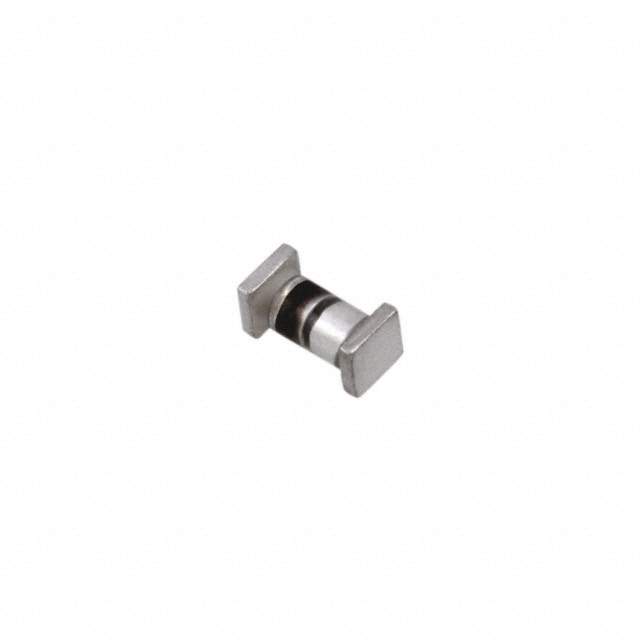

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JANTX1N5614US with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JANTX1N5614US with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JANTX1N5614US |
|---|---|
| Manufacturer | Microsemi |
| Description | DIODE GEN PURP 200V 1A D5A |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $5.104 | $4.639 | $3.943 | $3.363 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JANTX1N5614US | Manufacturer | Microsemi |
|---|---|---|---|
| Description | DIODE GEN PURP 200V 1A D5A | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 11702 pcs | Data sheet | 1N5614US thru 1N5622US |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 1.3V @ 3A |
| Voltage - DC Reverse (Vr) (Max) | 200V | Supplier Device Package | D-5A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Series | Military, MIL-PRF-19500/437 |
| Reverse Recovery Time (trr) | 2µs | Packaging | Bulk |
| Package / Case | SQ-MELF, A | Other Names | 1086-1041 1086-1041-MIL |
| Operating Temperature - Junction | -65°C ~ 200°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Diode Type | Standard |
| Detailed Description | Diode Standard 200V 1A Surface Mount D-5A | Current - Reverse Leakage @ Vr | 500nA @ 200V |
| Current - Average Rectified (Io) | 1A | Capacitance @ Vr, F | - |
| Base Part Number | 1N5614 |
