JANTX1N3289

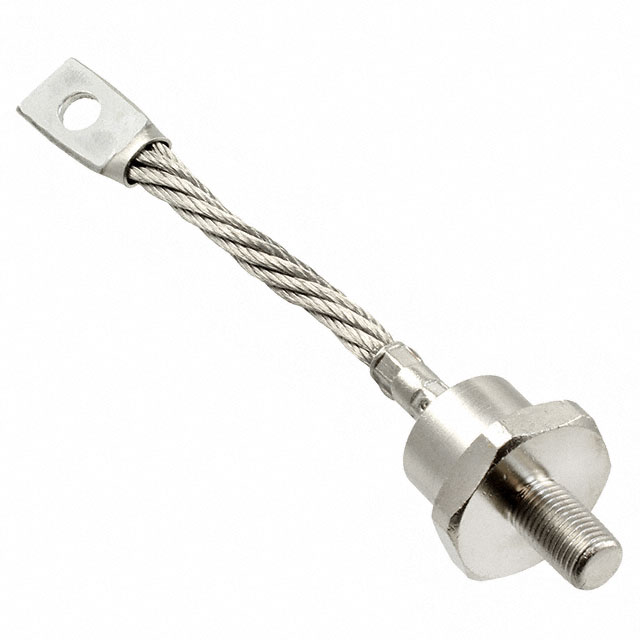

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JANTX1N3289 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JANTX1N3289 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JANTX1N3289 |
|---|---|
| Manufacturer | Microsemi |
| Description | DIODE GEN PURP 200V 100A DO205AA |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $277.159 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JANTX1N3289 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | DIODE GEN PURP 200V 100A DO205AA | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 111 pcs | Data sheet | 1N3289-95(R) |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 1.55V @ 310A |
| Voltage - DC Reverse (Vr) (Max) | 200V | Supplier Device Package | DO-205AA (DO-8) |
| Speed | Small Signal =< 200mA (Io), Any Speed | Series | Military, MIL-PRF-19500/246 |
| Packaging | Bulk | Package / Case | DO-205AA, DO-8, Stud |
| Other Names | 1086-15298 1086-15298-MIL |
Operating Temperature - Junction | -65°C ~ 200°C |
| Mounting Type | Stud Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Diode Type | Standard |
| Detailed Description | Diode Standard 200V 100A Stud Mount DO-205AA (DO-8) | Current - Reverse Leakage @ Vr | 10mA @ 200V |
| Current - Average Rectified (Io) | 100A | Capacitance @ Vr, F | - |
