JANTX1N1190R

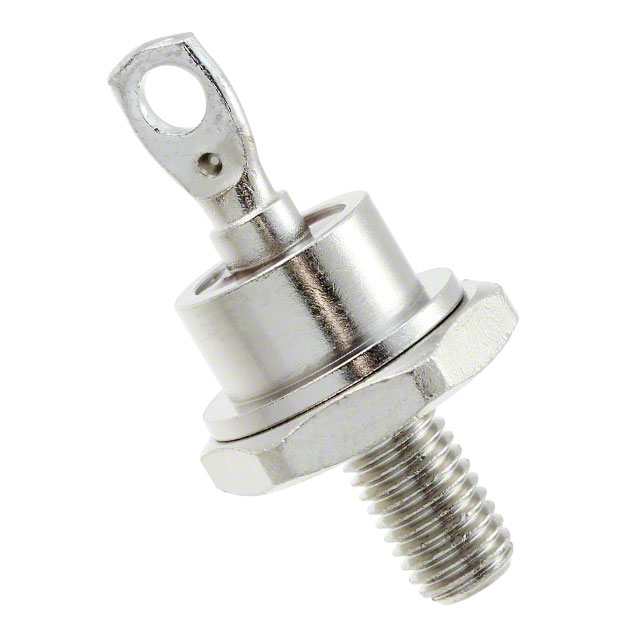

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JANTX1N1190R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JANTX1N1190R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JANTX1N1190R |
|---|---|
| Manufacturer | Microsemi |
| Description | DIODE GEN PURP 600V 35A DO5 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $29.78 | $27.975 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JANTX1N1190R | Manufacturer | Microsemi |
|---|---|---|---|
| Description | DIODE GEN PURP 600V 35A DO5 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 1280 pcs | Data sheet | 1N1184,86,88,90;1N3766,68(R) |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 1.4V @ 110A |
| Voltage - DC Reverse (Vr) (Max) | 600V | Supplier Device Package | DO-5 |
| Speed | Fast Recovery = 200mA (Io) | Series | Military, MIL-PRF-19500/297 |
| Packaging | Bulk | Package / Case | DO-203AB, DO-5, Stud |
| Other Names | 1086-15280 1086-15280-MIL |
Operating Temperature - Junction | -65°C ~ 175°C |
| Mounting Type | Stud Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Diode Type | Standard |
| Detailed Description | Diode Standard 600V 35A Stud Mount DO-5 | Current - Reverse Leakage @ Vr | 10µA @ 600V |
| Current - Average Rectified (Io) | 35A | Capacitance @ Vr, F | - |
