JANS1N4109UR-1

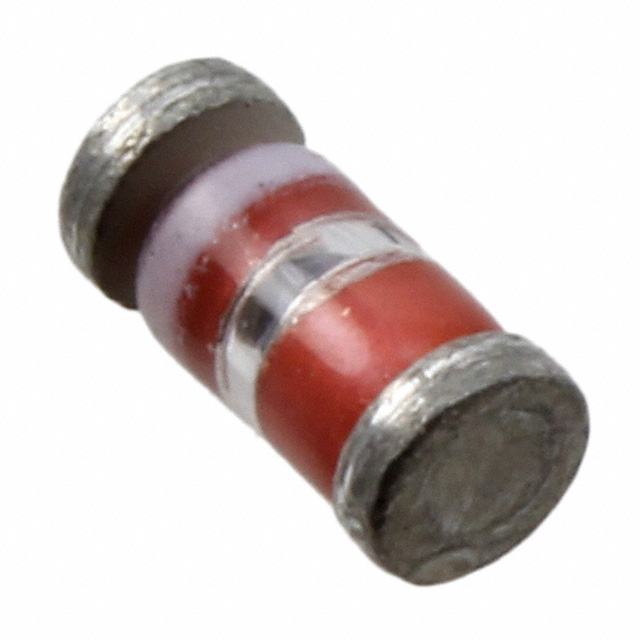

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JANS1N4109UR-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JANS1N4109UR-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JANS1N4109UR-1 |
|---|---|
| Manufacturer | Microsemi |
| Description | DIODE ZENER 15V 500MW DO213AA |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $35.259 | $33.056 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JANS1N4109UR-1 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | DIODE ZENER 15V 500MW DO213AA | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 903 pcs | Data sheet | 1N4614-4627UR-1e3, 4099-35UR-1e3 |
| Category | Discrete Semiconductor Products | Voltage - Zener (Nom) (Vz) | 15V |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 200mA | Tolerance | ±5% |
| Supplier Device Package | DO-213AA | Series | - |
| Power - Max | 500mW | Packaging | Bulk |
| Package / Case | DO-213AA | Other Names | 1086-15250 1086-15250-MIL |
| Operating Temperature | -65°C ~ 175°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 38 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Impedance (Max) (Zzt) | 100 Ohms |
| Detailed Description | Zener Diode 15V 500mW ±5% Surface Mount DO-213AA | Current - Reverse Leakage @ Vr | 50nA @ 11.4V |
