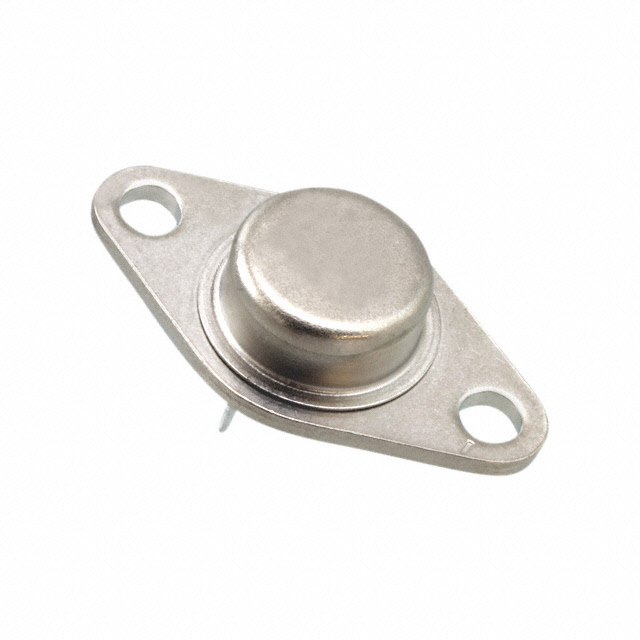

JAN2N6299
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JAN2N6299 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JAN2N6299 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JAN2N6299 |
|---|---|
| Manufacturer | Microsemi |
| Description | TRANS PNP DARL 80V 8A TO-213AA |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $16.615 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JAN2N6299 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | TRANS PNP DARL 80V 8A TO-213AA | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 2316 pcs | Data sheet | 2N6298, 2N6299 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 80V |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 16mA, 4A | Transistor Type | PNP - Darlington |
| Series | Military, MIL-PRF-19500/540 | Power - Max | 64W |
| Packaging | Bulk | Package / Case | TO-213AA, TO-66-2 |
| Other Names | 1086-15247 1086-15247-MIL |
Operating Temperature | -65°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Frequency - Transition | - |
| Detailed Description | Bipolar (BJT) Transistor PNP - Darlington 80V 8A 64W Through Hole | DC Current Gain (hFE) (Min) @ Ic, Vce | 750 @ 4A, 3V |
| Current - Collector Cutoff (Max) | 500µA | Current - Collector (Ic) (Max) | 8A |
