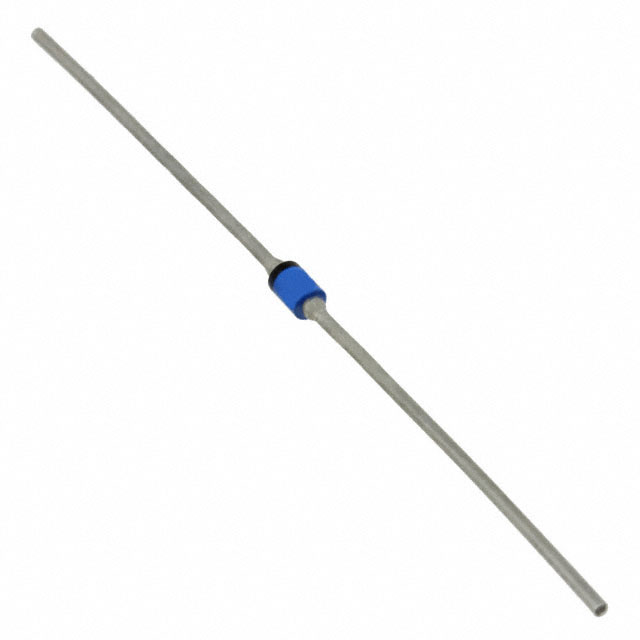

JAN1N4946
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JAN1N4946 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JAN1N4946 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JAN1N4946 |
|---|---|
| Manufacturer | Microsemi |
| Description | DIODE GEN PURP 600V 1A AXIAL |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $3.661 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JAN1N4946 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | DIODE GEN PURP 600V 1A AXIAL | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 8232 pcs | Data sheet | 1N4942-46 |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 1.3V @ 1A |
| Voltage - DC Reverse (Vr) (Max) | 600V | Speed | Fast Recovery = 200mA (Io) |
| Series | Military, MIL-PRF-19500/360 | Reverse Recovery Time (trr) | 250ns |
| Packaging | Bulk | Package / Case | A, Axial |
| Other Names | 1086-2011 1086-2011-MIL |
Operating Temperature - Junction | -65°C ~ 175°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Diode Type | Standard | Detailed Description | Diode Standard 600V 1A Through Hole |
| Current - Reverse Leakage @ Vr | 1µA @ 600V | Current - Average Rectified (Io) | 1A |
| Capacitance @ Vr, F | - |
