JAN1N3614

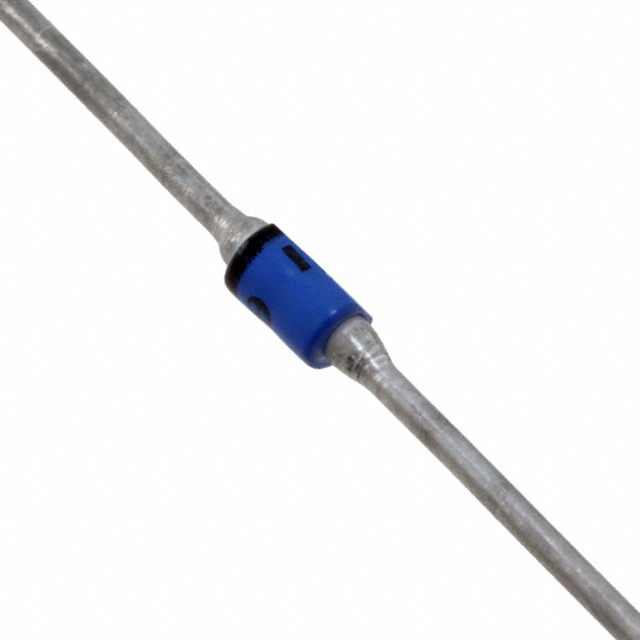

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JAN1N3614 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JAN1N3614 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JAN1N3614 |
|---|---|
| Manufacturer | Microsemi |
| Description | DIODE GEN PURP 800V 1A AXIAL |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $3.471 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JAN1N3614 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | DIODE GEN PURP 800V 1A AXIAL | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 8644 pcs | Data sheet | 1N36xx,1N3957 |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 1.1V @ 1A |
| Voltage - DC Reverse (Vr) (Max) | 800V | Speed | Standard Recovery >500ns, > 200mA (Io) |
| Series | Military, MIL-PRF-19500/228 | Packaging | Bulk |
| Package / Case | A, Axial | Other Names | 1086-1999 1086-1999-MIL |
| Operating Temperature - Junction | -65°C ~ 175°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Diode Type | Standard |
| Detailed Description | Diode Standard 800V 1A Through Hole | Current - Reverse Leakage @ Vr | 1µA @ 800V |
| Current - Average Rectified (Io) | 1A | Capacitance @ Vr, F | - |
