Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Arrays > FST160100

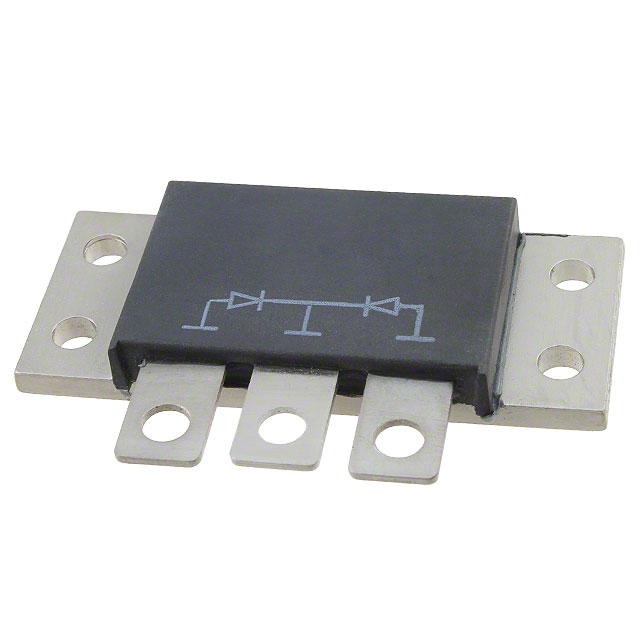

FST160100

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FST160100 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	FST160100
Manufacturer	Microsemi
Description	DIODE MODULE 100V 80A TO249
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5357 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	FST160100	Manufacturer	Microsemi
Description	DIODE MODULE 100V 80A TO249	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5357 pcs	Data sheet	FST16090 - FST160100
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	960mV @ 80A
Voltage - DC Reverse (Vr) (Max)	100V	Supplier Device Package	TO-249
Speed	Fast Recovery = 200mA (Io)	Series	-
Packaging	Bulk	Package / Case	TO-249AA Isolated Base
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Schottky
Diode Configuration	1 Pair Common Cathode	Detailed Description	Diode Array 1 Pair Common Cathode Schottky 100V 80A Chassis Mount TO-249AA Isolated Base
Current - Reverse Leakage @ Vr	2mA @ 100V	Current - Average Rectified (Io) (per Diode)	80A
