DRF1300

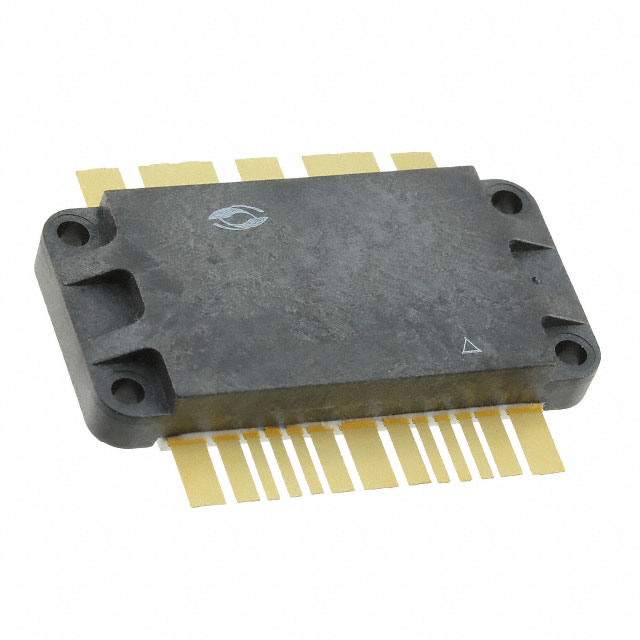

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DRF1300 with confidence from Components-World.HK, 1 Year Warranty
Dowload DRF1300 Details in PDFSee Product Specifications for product details.
Buy DRF1300 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DRF1300 |
|---|---|
| Manufacturer | Microsemi |
| Description | IC SWITCH PUSH PULL HYBRID |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $85.461 | $81.335 | $78.388 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | DRF1300 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IC SWITCH PUSH PULL HYBRID | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 457 pcs | Data sheet | DRF1300 |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | - |
| Voltage - Load | 10 V ~ 15 V | Switch Type | General Purpose |
| Supplier Device Package | - | Series | - |
| Rds On (Typ) | 240 mOhm | Ratio - Input:Output | 1:1 |
| Packaging | Bulk | Package / Case | 18-Module |
| Output Type | N-Channel | Output Configuration | Low Side |
| Operating Temperature | - | Number of Outputs | 2 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 44 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | On/Off |
| Input Type | Inverting, Non-Inverting | Features | - |
| Fault Protection | - | Current - Output (Max) | 30A |
