Home > Products > Discrete Semiconductor Products > Diodes - Zener - Single > CDLL3825A

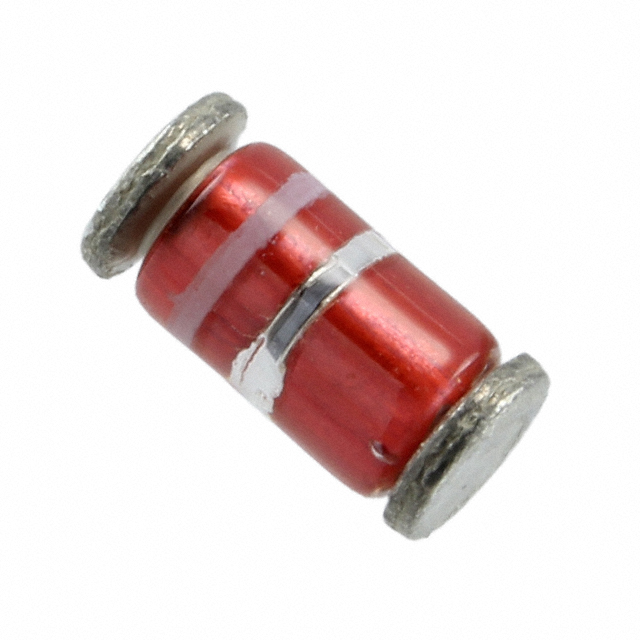

CDLL3825A

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CDLL3825A with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CDLL3825A
Manufacturer	Microsemi Corporation
Description	DIODE ZENER 4.7V 1W DO213AB
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 10873 pcs
Reference Price (In US Dollars)	100 pcs
Reference Price (In US Dollars)	$3.302

Product parameter
Data sheet

Product parameter

Part Number	CDLL3825A	Manufacturer	Microsemi Corporation
Description	DIODE ZENER 4.7V 1W DO213AB	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	10873 pcs	Data sheet	1N38(21-28)AUR-1, CDLL3821-28A
Category	Discrete Semiconductor Products	Voltage - Isolation	8 Ohm
Voltage - Breakdown	DO-213AB	Series	-
RoHS Status	Bulk	Power - Max	1W
Polarization	DO-213AB, MELF	Other Names	1086-1208 1086-1208-MIL
Operating Temperature	-65°C ~ 175°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Manufacturer Part Number	CDLL3825A	Impedance (Max) (Zzt)	4.7V
Expanded Description	Zener Diode 1W ±5% Surface Mount DO-213AB	ESR (Equivalent Series Resistance)	±5%
Diode Configuration	5µA @ 1V	Description	DIODE ZENER 4.7V 1W DO213AB
Current - Reverse Leakage @ Vr	1.2V @ 200mA
